Trim Frame

2 REPLIES 2
SOLVED
Back to Inventor Category
Back to Topic Listing
Reply
Message 1 of 3
2511028MSAE
Explorer
266 Views, 2 Replies
‎12-23-2023 05:31 PM
‎12-23-2023 05:31 PM

Trim Frame

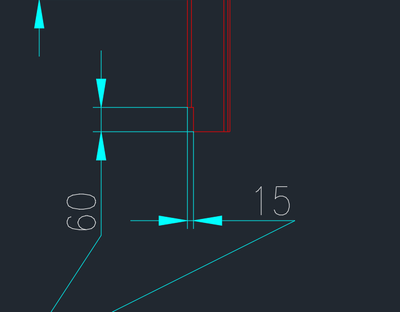

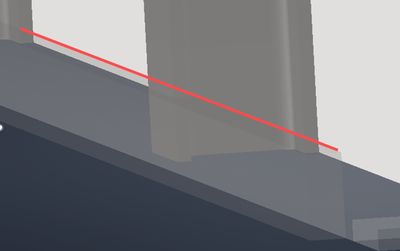

Hello, I want to specifically cut an I-beam as shown in the drawing. Does anyone have an idea how to do this in Inventor?





Tags (2)
Report
Labels (1)
Labels:
0 Likes
Reply
2 REPLIES 2
Message 2 of 3
kacper.suchomski
Mentor
in reply to: 2511028MSAE
‎12-23-2023 07:05 PM
‎12-23-2023 07:05 PM

Hi

Edit profil (duble click frame subassembly -> duble click profile)

New sketch (you can project geometry of other part)

Extrude






Kacper Suchomski

EESignature


YouTube - Inventor tutorials | WWW | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


Report
Reply
Message 3 of 3
JDMather
Consultant
in reply to: 2511028MSAE
‎12-23-2023 10:34 PM
‎12-23-2023 10:34 PM

@2511028MSAE

Attach your assembly here if you can’t figure it out.

(Make up a dummy assembly if your data is proprietary.


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


Report
Reply
Reply
