I have sheetmetal parts i export image to .png file for a company broshure. Right now i have a white background with shadows. How do i make the background transparent before exporting 3D image? Here is what it looks like now. I am having a hard time finding it under application options/ colors.

[alewer]

If you render the image with Studio, you can save as a .png with alpha channel.  I'm on 2010 so I am not sure if this is an option using "Save Copy As" in 2011 or 2012.

[RonnieWilkins]

It's no different for 2011 or 2012

[johnsonshiue]

Hi! Here is how you change document background.

In Inventor, go to Tools -> Application Options -> Colors -> Background -> Background image and point to a transparent "colored" image file.

Thanks!

[RonnieWilkins]

That does not work, at least in 2012

[RonnieWilkins · Accepted solution]

Here is how it can be done.

Forgot to mention...

Save As Type must be set to PNG or another image type that supports Alpha Channels.

Bitmap (.bmp) files do not support alpha channels.

[Anonymous]

Edited and Merged by
Discussion_Admin

[mcgyvr]

Of what? Open the png file in your photoediting tool of choice (photoshop,etc..) use the magic wand to remove the background and save as png

Edited by
Discussion_Admin

[Curtis_W]

Hi freestyle4x4f150,

Here's a tip from Mark Flayler on out putting a PNG with a transparent background from Studio:

http://blogs.rand.com/manufacturing/2010/01/inventomizations-image-export-options.html

Also, your blank post is likely a result of a setting in IE9. If you set it to Compatibility Mode, it should fix it:

http://support.microsoft.com/kb/956197

I hope this helps.

Best of luck to you in all of your Inventor pursuits,

Curtis

http://inventortrenches.blogspot.com/

Edited by
Discussion_Admin

[Anonymous]

Where do I find a transparent colors image?

[Anonymous]

Here you go.

[subhro.p.dutta]

best way will be to publish in PNG , transfer to Photoshop , then background Transparency

[matthew]

As an addon to this is there a way to create a wall that will also output as an alpha channel so that only the shadows are captured in the render. Allowing the shadows to be usable in any background?

[spl1970]

Going back to the original question (doesn't answer the question about shadows being captured), unless I'm missing something..

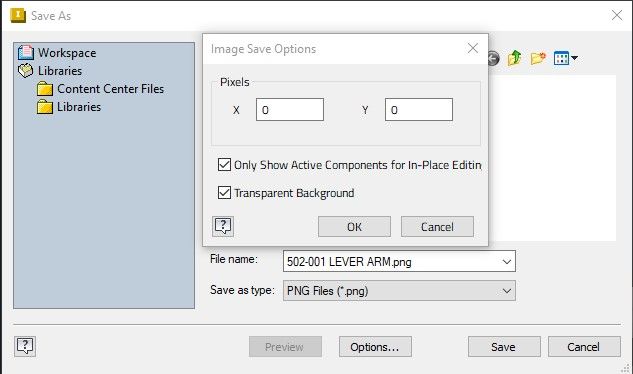

File -> Export -> Image
