SPLIT NUMBER OF SAME COMPONENT IN PART LIST DRAWING

[fabiio_souza]

Dears,

Could you help me about how to split the number of same component (same part number) in part list?

Example: In part list there are 26 Hex Nuts (same part number) and I need two lines in BOM for represent them. (16 Hex nuts with the baloon "102.920" e 08 Hex Nuts with de baloon "443.920").

I am using Autodesk Inventor 2022 version.

This is what happens:

This is what I need:

[CCarreiras · Accepted solution]

Hi!

You can have different instance numbers for the same parts (And same Part Number)

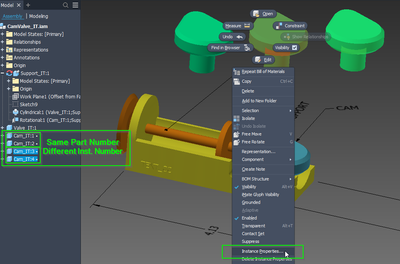

Select all the group elements and create an instance variable (i created POS) and give the value you need for each group.

In BOM, set this:

Now the same parts are splitted by POS variable (Instance variable)

In drawing, you have to add the POS column

[CCarreiras · Accepted solution]

In drawing:

Add POS column to the part list

Group the components by POS

And that's it....

[fabiio_souza]

I did it but the problems still exists.

When I check in the drawing, the parts are splitted and showed one by one:

I followed the steps you suggested exactly the same.

[CCarreiras]

Look again to the my "drawing post"...

You have to group the components by "CÓD DIN"

Edit the part list

Go to group settings

etc etc...

[fabiio_souza]

Thanks a lot by the support!
