Hi,
just a little question.
With a linear segment (flange contour)+rolled segment (contour roll) i can optain a flatten pattern
The same shape, obtained with a unique simple sweep, than converted in sheet metal part with its thickness, Inventor can't obtain a flatten ground
Am I correct?
Thanks!
Admaiora
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Can you give an example?

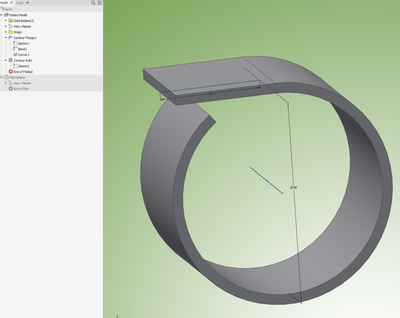

My own little test seemed to have worked, but i'm unsure how you're approaching this...
Hi!
It will not work with a solid sweep since Inventor doesn't guarantee a constant thickness along the part with these tools (sweep, loft and shell), and constant thickness across the part is a requirement for the inventor to be able to calculate the flat pattern.
If you use surface sweep and then Thicken tool to create the solid, it works, because Thicken tool guarantees the same thickness across all part.
Yeah, that's was my point.
If there is a little tolerance (i don't think so) in converting sweep feature
Admaiora
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
This is a sweeped shape
Admaiora
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
@-niels- wrote:@CCarreirasThat sounded plausible, but on my little test part it still worked...??
This is explained in Inventor documentation.
Using Shell, sweep, etc, if the geometry is simple, usually it will work, but in some cases, that will not work. (I tried several times with Shell and it worked most of the time).
My point is... with Thicken it works always.
The part is not bended... is a typical press machined.
For the part you post... Well.... a poor workaround to obtain data enough to create a flat pattern:
Anyway, if modeled with sheet metal roll, I believe it will flatten.
Yes.
Using sheet metal features, it will flatten easy.
Admaiora
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Hi Matteo,
To unroll a sheet metal part, the roll has to be created by Contour Roll. It is because each CR carries the information that helps unroll operation (Unroll Options, kind of like K factor). A generic shape does not have such model intelligence. As a result, flat pattern will fail.
Many thanks!
