Placing an .stl file in an assembly using associated origins

sdock462
Explorer
Explorer

I'm trying to place a set of .stl files within an assembly within Inventor and want to be able to select the file and place without having the mouse click effect orientation of part. How do I place parts using their associated origins rather than placing them by clicking within the assembly. Pointing me in the right direction would be much appreciated.



Regards,

Steve

0 Likes
Accepted solutions (1)
745 Views
3 Replies
Replies (3)
Message 2 of 4

YannickEnrico
Advisor
Advisor
Accepted solution

Right click -> Place Grounded at Origin



Edit: Screenshot got a little wonky. I'm sure you can see the button.






_______________________________________________________________________________________
Intel Core i9-14900KF
64 GB DDR5 6000 MHz
2TB WD_BLACK
RTX A4000
------------------------------
Inventor 2026 Professional
Message 3 of 4

YannickEnrico
Advisor
Advisor

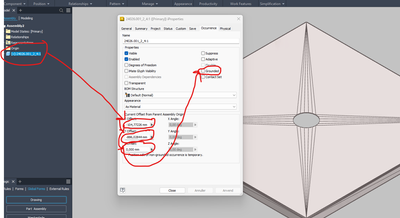

Alternatively place it and edit the placement afterwards via iProperties.

Change the XYZ offsets to 0 and make sure the part is grounded






_______________________________________________________________________________________
Intel Core i9-14900KF
64 GB DDR5 6000 MHz
2TB WD_BLACK
RTX A4000
------------------------------
Inventor 2026 Professional
Message 4 of 4

sdock462
Explorer
Explorer

Thank you so much for your assistance, much appreciated 🙂
