Inventor: Model Text mirror problem

[raj.best52]

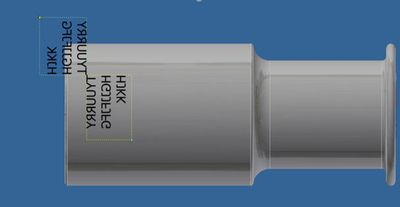

In model sketch mirror text problem. See attached snap shot.

sergio.bertino has edited your subject line (Model Text mirror problem) and embedded your image for clarity.

[Sergio.Bertino]

Hello @raj.best52,

I see that you are visiting as a new member of the Inventor Forum.
Welcome to the Autodesk Community!

Please create a pack and go of the dataset and attach it on your next reply: To Use Pack and Go to Package Files

Please explain better what is the actual behavior and the expected one.

[Cadmanto]

Welcome to the forum.

Almost looks like you have the text on the wrong side of the plane.

What does the text look like in the editor?

What version are you running?  Can you attach your file here?

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2018

[blandb]

Right Click on your workplane and choose "Flip Normal".

[SBix26]

The text isn't mirrored, you're simply looking at it from the back side.  Workplanes have normal (front) & back sides, just as faces do, and the purple color shown in your image is the back side of the workplane.  Sketches are on the normal (front) side of the plane.  Follow @blandb's suggestion to reverse the workplane, making the normal face, and therefore the sketch, point the opposite direction.

---

Sam B
Inventor Pro 2019.3 | Windows 7 SP1
LinkedIn

[NigelHay]

You might also find that you can flip the text by grabbing a corner of the text boundary & dragging it around.

[raj.best52]

I have tried but not possible.

[johnsonshiue]

Hi! Something does not seem right to me but I cannot reproduce it myself. Could you share the file here?

Many thanks!
