I am trying to make an infinity loop out of 1.25" tube for a dance studio. These are basically two identical rolled tubes that are attached together. The problem I am having is where the loop crosses itself in the middle. I am trying to form the tube where it is offset at the point of intersection. I hope this makes sense. I have attached the sketch of half the loop. Its overall width and height are critical.



Thanks for any help you can give.



Inventor Pro 2025



Casey

0 Likes
Accepted solutions (3)
1,303 Views
11 Replies
Replies (11)
Message 2 of 12

kacper.suchomski
Mentor
Mentor

Hi

You should also include a hand-drawn sketch of the desired outcome.


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


0 Likes
Message 3 of 12

engineeringYR7JU
Enthusiast
Enthusiast

Hope the sketch helps.

Message 4 of 12

kacper.suchomski
Mentor
Mentor

Just draw a side sketch that shows the bending of the material, then use the curve intersection tool in the 3D sketch. This will give you a path that will look like an 8 from above and a slight trough from the side.


Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


Message 5 of 12

engineeringYR7JU
Enthusiast
Enthusiast

Is there a video somewhere on how to do this?

0 Likes
Message 6 of 12

kacper.suchomski
Mentor
Mentor





Kacper Suchomski

EESignature


YouTube - Inventor tutorials | LinkedIn | Instagram

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


Message 7 of 12

Pineapple2024
Advocate
Advocate
Accepted solution





IV2023

Message 8 of 12

engineeringYR7JU
Enthusiast
Enthusiast

Pineapple2024,



Thank you very much for taking the time to do this. I have never had to do anything like this. Even though it looks fairly simple. I am used to flat parts only. I will look at this more after the weekend. Again, I thank you very much.

Message 9 of 12

engineeringYR7JU
Enthusiast
Enthusiast

Pineapple2024,



The only issue I am having is with the constraints and getting all of the parts to align and miss each other.

0 Likes
Message 10 of 12

Pineapple2024
Advocate
Advocate
Accepted solution

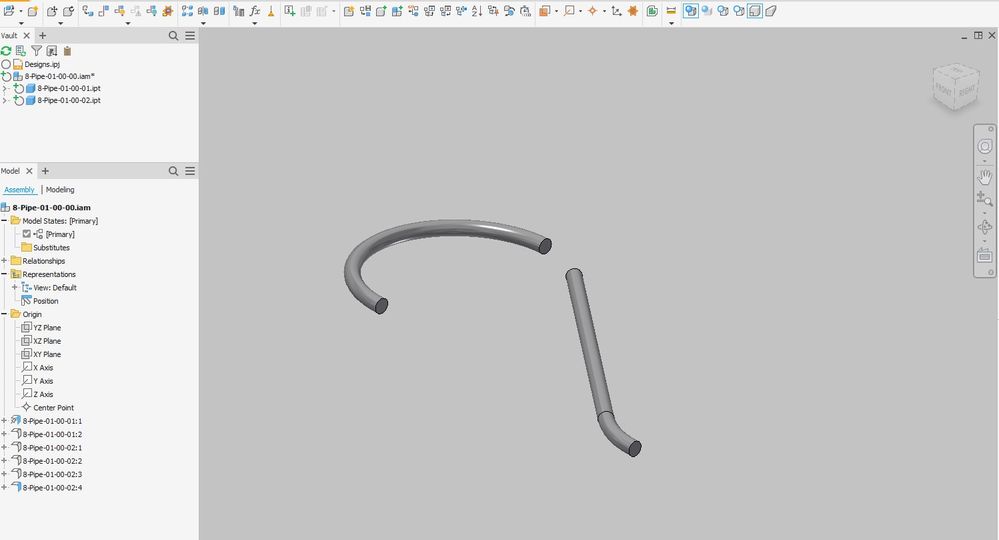

Model it flat.  Whoever welding it should be able to "twist it" to fit.

Make the 2 loop and fit straight to them.

0 Likes
Message 11 of 12

SBix26
Consultant
Consultant
Accepted solution

Here is what @kacper.suchomski was suggesting, a 3D sketch curve created by the intersection of two 2D curves.  After creating half of the loop, I simply patterned it 180° to a new solid body, ready for welding at each end as you showed in your sketch.




The attached file is Inventor 2025 format.


Sam B

Inventor Pro 2025.1.2 | Windows 11 Home 23H2

Message 12 of 12

engineeringYR7JU
Enthusiast
Enthusiast

That is exactly what is supposed to look like. I appreciate you taking the time and effort to do this. I will take what you have shown and explained and use it for future projects.
