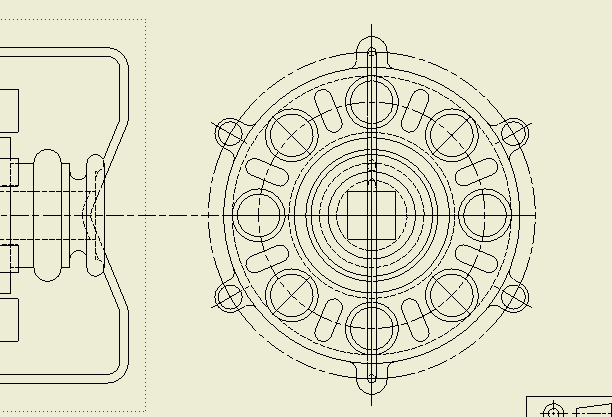

You can see in the Finished Drawing (assignment drawing) there are no curves. But in .idw file there are curves.  How to get rid of this?



[mdavis22569]

you can click on those items in the idw and turn off the visibility ... however your view is CORRECT ..it's showing the true projected view with the bends

you can see I turned off the bottom ones ... with a click of the mouse

[JDMather]

Turn off visibility of Tangen Edges

or

right click and hide.

[JDMather · Accepted solution]

Your Sketch18 has incorrect dimension and is not fully constrained.

Also, Sketches 6, 8, 12, 14 are not fully defined.  You have been instructed here to stop at any time you do not have a fully constrained sketch and ask questions here about how to correct the situation.

With correct dimension - the Sweep does not intersect the square cut.

[Anonymous]

Thanks for identifying the error. Shown curves in the .idw file also vanished with the dimension correction in Sketch 18.

[Anonymous]

I don't know how to make Sketch 6 fully constrainted.

[JDMather]

Drag line endpoint - what do you see?

Turn on Constraint Visibility - what do you see?

[Anonymous]

If I Drag line endpoint I can see square is moving. If I turn on Constraint Visibility I can see all the constrained that had been made.

[JDMather]

---

@Anonymous wrote:
If I Drag line endpoint I can see square is moving. ....

---

So why does it move?

What is needed to remove the degrees of freedom?

Hint:  Have you started going through these yet?

http://forums.autodesk.com/t5/inventor-general-discussion/skillsusa-document-now-on-screencast/m-p/5...

[Anonymous]

No I didn't go through the tutorial. I had a glance on that. It seems heavy for the beginners.

[JDMather]

---

@Anonymous wrote:
No I didn't go through the tutorial. I had a glance on that. It seems heavy for the beginners.

---

These are intended for beginners.

10 minutes that will change your life.

Especially time steps 2:06, 6:15, 8:52

[Anonymous]

Okay I will go through it.

[Anonymous]

There are 11 videos in the link. I wish to know "Time steps 2:06, 6:15, 8:52" is which video?

[JDMather]

No.

There is only one video Click Here >>10 Minutes<<Click Here?

[Anonymous]

http://forums.autodesk.com/t5/inventor-general-discussion/skillsusa-document-now-on-screencast/m-p/5...

I mean above link has 11 videos.

[Anonymous]

Inventor 102 Constrain your Sketches - CFW15 is a single video.

Is any way to download this videos. So that I can save it in my folder and frequently watch it.

[Anonymous]

Why it showing fully constraint?

[JDMather]

---

@Anonymous wrote:

Why it showing fully constraint?

Did you attach the correct file?

Can you create a Screencast recording?

In the file you attached here - it is not fully constrained.
