Helical Lofting help

[joanzer]

Hello, i am trying to make the end of this helical thread profile have a radius corner which follows the helical path. i cant quite get it working. The 3d sketches are top and bottom rails and the 2d sketches are shown aswell. Can i get some advice as to what im missing ?

[kacper.suchomski]

Hi

You did not attach a file.

[joanzer]

here it is

[kacper.suchomski]

What can I do with graphics?

[SBix26 · Accepted solution]

I tried rounding out the end of a helical cut by using a full round fillet.  I think it's easier if you wait to add the root radii of your thread until after the full round:

---

Sam B

Inventor Pro 2027 RTM | Windows 11 Home 25H2

[rosie_lucas1]

Hi @joanzer,

I wanted to follow up to see if the help from @SBix26 was able to get things resolved for you?

If so, please consider selecting "Accept Solution." It makes it easier for others to find helpful info.

If you’re still having trouble, feel free to reply and let us know. We’re happy to assist.

All the best,

Rosie | Community Manag

[SBix26]

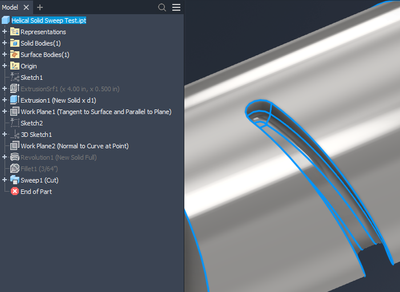

Circling back to this topic after being away for a while, the best method is to use Solid Sweep.  Instead of sweeping a 2D profile, you essentially create the 3D cutter as a separate solid body, then use the Sweep tool with Solid Sweep toggled on to drive the cutter along the path.  That leaves the end as realistic as Inventor can make it.

If you're interested in the file, I created the above image in Inventor 2027, which you would need in order to open it.

---

Sam B

Inventor Pro 2027 RTM | Windows 11 Home 25H2
