HI
Is there a way to calculate this design, the impact in the cylinder ends, and the force in the piston rod/tread. I don’t know if Dynamic simulation module can do a job like this.
Moving a block, with following data:
Job to move
927.6g Block
4times pr. second.
Cylinder
10mm stork
Ø12mm diameter
6bar
Regards
Henrik
What direction is Gravity?
Do you have a known friction value for the Prismatic Joint?
HI JD
The gravity is along the Z, it think -Z, is normal steel both parts frictioncoefficient about 0.35
Regards
Henrik
HI JD

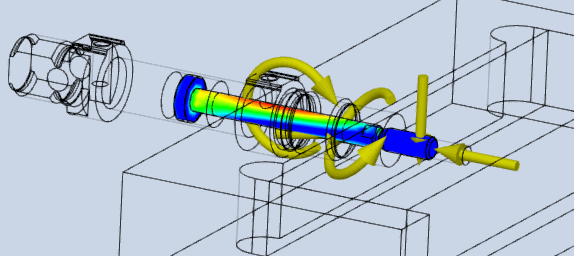

It is not completely clear to me, if the model you created can answer my force questions.
Is it possible for me to get your model, and maybe you can, point out for me the reactions force I answer for.
Regards
Henrik
