Cant get bolted connections to use point on frame generator

[mwesse]

Sorry for my newbiness but I am really struggling with frame generator and trying to apply bolted connections. I create a sketch...at just about every level from top to the element and when I go to use the point option, the drawn points are not highlighting...obviously missing something very simple. Thanks for any help

[Xun.Zhang]

Hi @mwesse,

It seems you created an assembly sketch, which is not supported. To work on it, you have to create a part level sketch instead.

You can inplace create a part and create a new sketch, project those points you want and back to assembly, then, you can create bolt connection based on those points.

Hope it helps!

[mwesse]

Thanks Xun, I was able to get it working and understand.

Following on from that.... Now with using the hole method and wanting to follow a patterned hole set, why is it that the following doesnt work? ie follow pattern is greyed out?

[mwesse]

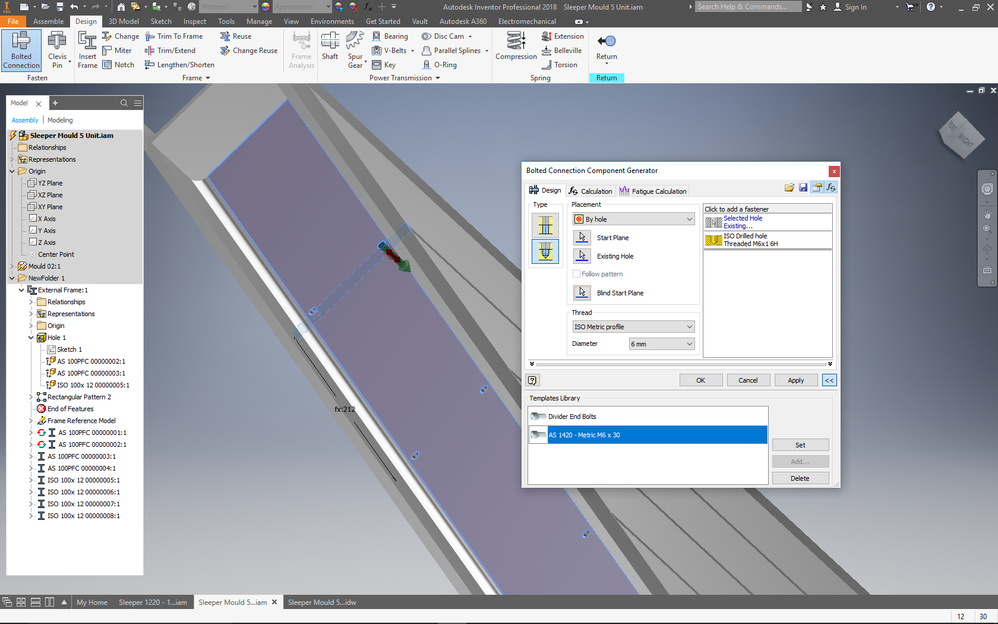

Also, if the sketch is in with the frame ie as per pic, why isnt that available as points for bolts?

[Xun.Zhang · Accepted solution]

Hi @mwesse,

Regard to the pattern problem, it also request a part level hole feature pattern rather than assembly hole pattern.

Refer to below video.

[Xun.Zhang]

Hi @mwesse,

If you talking about "Sketch 1" in your image, it is an assembly sketch. If you talking about sketch "Frame model reference", it is a 3D sketch. so that's the reason why you can't reuse them.

Hope it helps!

[mwesse]

Specifically the frame sketch...but it makes sense now. Thanks so very much
