Array around the line

[francischen]

Hi experts,

How to use array around the line?

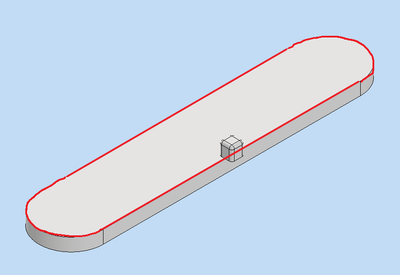

like the red line.

Because entering drawing environment, and project that line.

It can't click the line.

Thanks!

[JDMather · Accepted solution]

@francischen

What version of Inventor?

Why did you Attach STEP rather than native Inventor files?

Click on image above to enlarge.

[francischen]

Thanks for your reply.

Using Inventor2021

but i reference your model, and try again.

how do you show  rectangular pattern below BODY:1 ?

[BDCollett · Accepted solution]

---

@francischen wrote:

Thanks for your reply.

Using Inventor2021

but i reference your model, and try again.

how do you show  rectangular pattern below BODY:1 ?

---

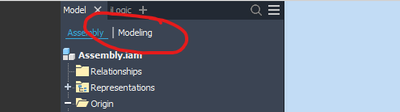

You need to be on the Modeling tab as highlighted in their example above.

[francischen]

Thanks!

have already successfully done the model.

[johnsonshiue]

Hi! This is a powerful workflow. To add to the experts' comments, the part feature pattern can be a Sketch Driven Pattern so that it can be even more versatile.

Many thanks!
