Part number in model and Part List not matching in title block

Joe.rosewiczEB4S2
Explorer
Explorer

I have an assembly in 3D which I have transferred to a drawing. Page one of the drawing set I have an assembly view with balloons and a parts list. Here it shows my updated part numbers the same as in the 3d file. But once move to my detail pages of each part, the title block does not have the correct part number updated from the 3d file or the Parts list.



this is imperative, without correct matching part numbers.. its impossible to dissern which detail drawing you are looking at and how it correlates to the assembly page.



This seems like a very simple action, being a pervious inventor and solidworks user. Does F360 just not have this feature? I must just be something I am missing?



Any help is really welcome thank you!!

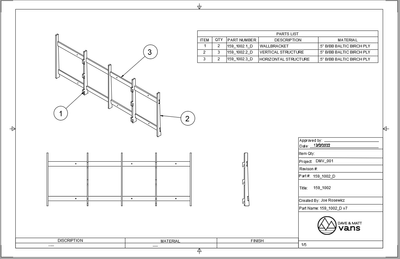

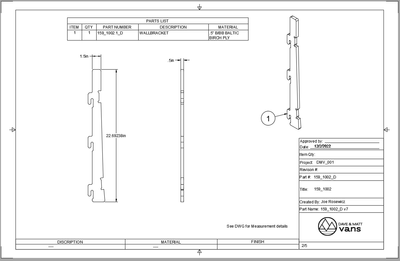

please see attached examples:

JoerosewiczEB4S2_0-1670114727911.pngJoerosewiczEB4S2_1-1670114752864.pngJoerosewiczEB4S2_2-1670114782285.png



0 Likes
438 Views
2 Replies
Replies (2)
Message 2 of 3

jhackney1972
Consultant
Consultant

I cannot recreate your stated issue.  I created an assembly drawing and then separate detail sheets and the Part Number matches through out the drawings.  I created them using the old method and the recent updated method of duplicating sheets, both work perfect.  The video will show this.  I recommend you create a video and show your process so the Forum users can take a look at it.



John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 3 of 3

ClintBrown3D
Autodesk
Autodesk

Hi @Joe.rosewiczEB4S2



I'm sorry to hear that you are having trouble. I'd like to have a look at the dataset, that way I could point you in the right direction.



Please can you share a downloadable link with me? Or if it is sensitive, feel free to send it directly to me Clint. Brown {a} Autodesk.com





Clint Brown
Senior Product Manager - Autodesk Fusion



Book some time on my calendar
