How do I mirror a body properly?

autodeskN884Q
Advocate
Advocate

I have an extrusion which I want to print with a 3d printer. The extrusion is too wide to print in one rush so I want to split in two parts with a simple connection.



Let's call them extrusion A and B

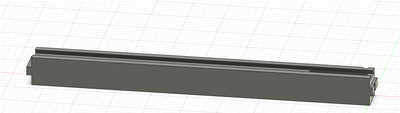

You can see A in the picture below. The connector from A to B is on the right side

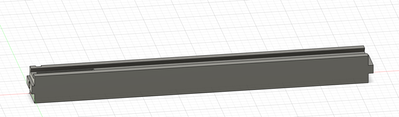

Extrusion B shall be the same as A just mirrored. Like in the picture below






But the connector part should not be mirrored. I want to sketch the receiving part now.





How do I mirror my extrusion w/o sketching it a second time?



File is attached

Thank you









0 Likes
Accepted solutions (1)
940 Views
2 Replies
Replies (2)
Message 2 of 3

wmhazzard
Advisor
Advisor
Accepted solution

After the mirror, do a combine cut of the mirrored body and check the keep tools box.





0 Likes
Message 3 of 3

davebYYPCU
Consultant
Consultant

Delete the extrusion 3, that makes the joiner block - tab.

Copy Paste New - the A Component.

On Component A, redo Extrude 3.

On Component B, Make the socket from it's extrude sketch.






You will likely have to mirror Component B body to make Extrusion 4 go to the correct side.

Might help....
