Foreshortened dimensions

[jseifeddine]

Hey all. I'm trying to figure out how to foreshorten a dimension for a detailed view? I want the diameter of this groove because it's difficult to see in a regular view. Jogged radius doesn't work here since Fusion sees this as a straight edge. I understand that Fusion doesn't support foreshortened dimensions, there must be some work around to this...? Thanks!

James

[jhackney1972 · Accepted solution]

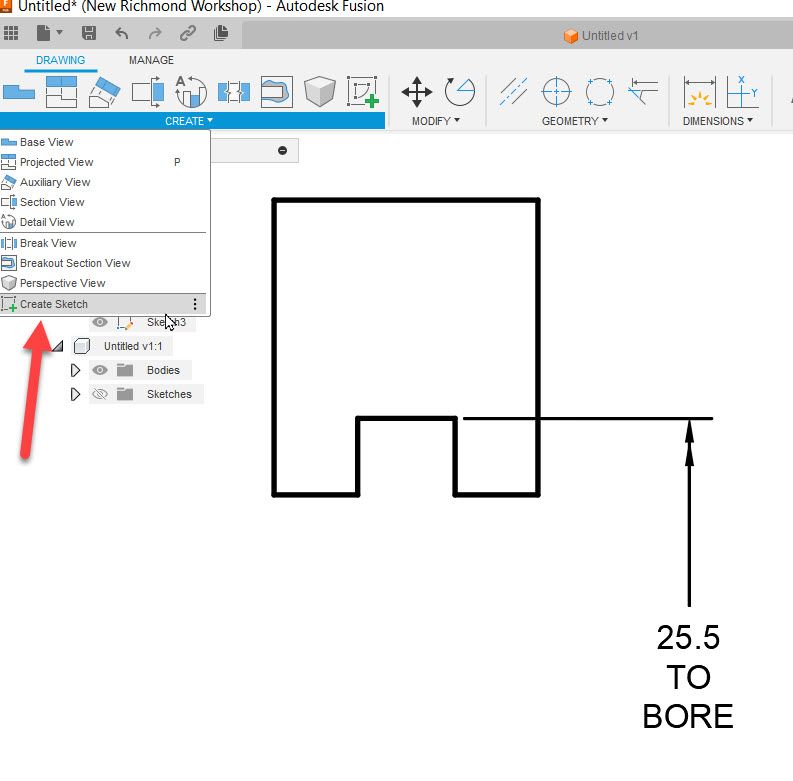

If you are willing to work at it, you can use the Create Sketch command in the drawing workspace to create the geometry needed and the text command to add the dimension.

[jseifeddine]

Hi John. Thanks. Was hoping there was a less manual way, but it should do for now.
