Creating Flat Pattern - Error

djstassen84
Contributor
Contributor

Good ay. I am creating a rear bumper for a vehicle and has designs the bumper in 3mm Sheet Metal. The whole bumper works great but if I try and do a flat pattern of the step in the bumper, fusion gives me an error. Please can someone assist in this matter as there is no error code to search for. I have attached the Fusion file. Your help will be greatly appreciated.

0 Likes
322 Views
5 Replies
Replies (5)
Message 2 of 6

TheCADWhisperer
Consultant
Consultant

@djstassen84

Can you Attach the *.f3d file of just this component?

Something looks fishy in these corners.



Never mind. Yikes!

Are you ready to start over from scratch (on just this component)?




0 Likes
Message 3 of 6

djstassen84
Contributor
Contributor

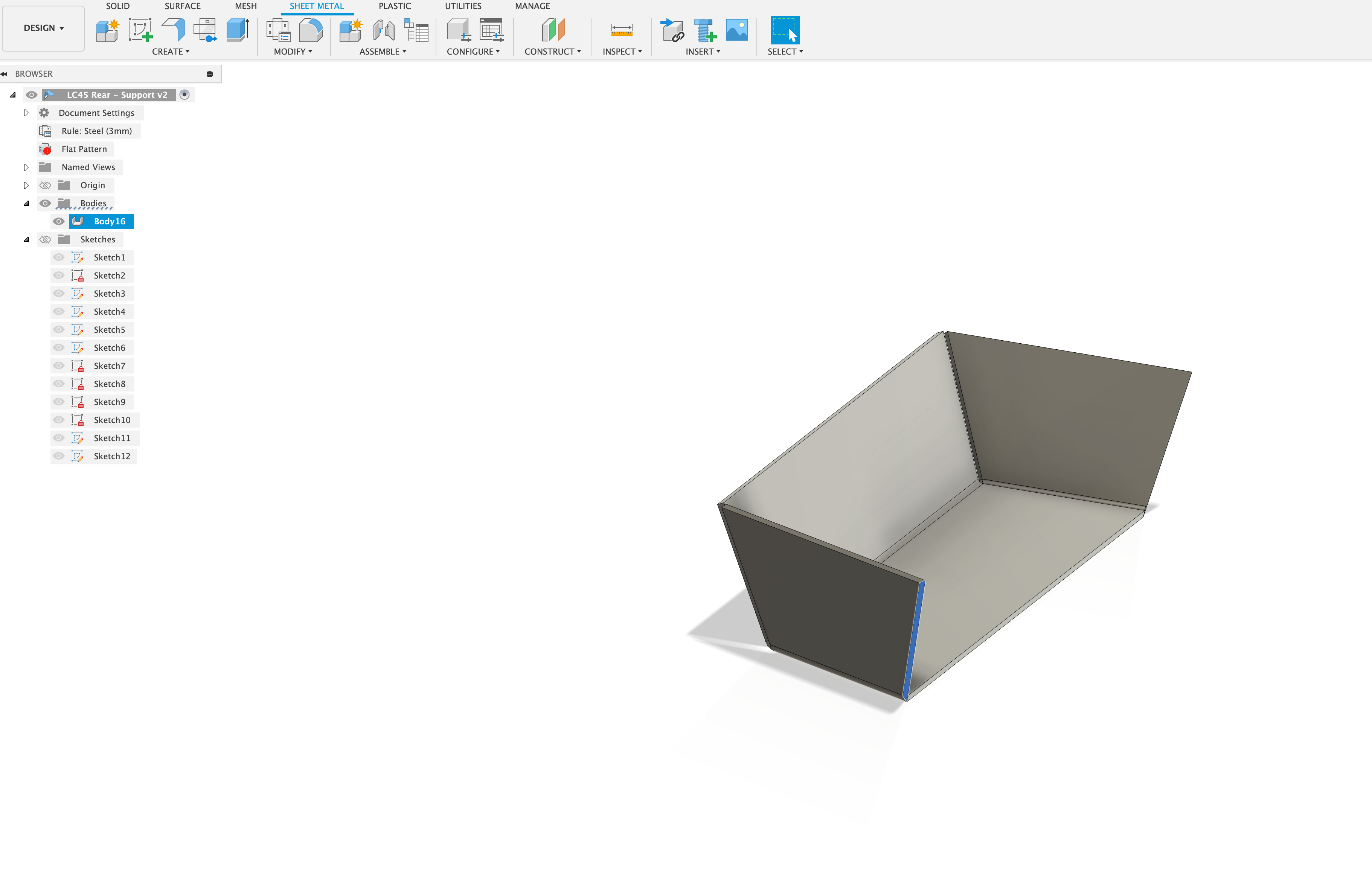

I think this is what is causing the issues. (See attached the images) The problem is that I used the draft function to adjust the sides to 20 degree angle. Or should I have used another function? Please see attached the screen shots.

0 Likes
Message 4 of 6

djstassen84
Contributor
Contributor

I will gladly start from scratch if that is what I need to do. I am training myself in Fusion so I am learning every day. Your assistance are greatly appreciated.

0 Likes
Message 5 of 6

TheCADWhisperer
Consultant
Consultant

@djstassen84

Start a new file.

Create the sketch shown below.


Click on image to enlarge.



Attach your progress file here.




0 Likes
Message 6 of 6

djstassen84
Contributor
Contributor

Thank You for the feedback. I have done the steps as described. What will be my next step?
