Can't loft body

[nectarietotan]

Hi! I have a problem, I want to loft a body, it's quite complex, but I can't, I keep getting errors.

I will post photos of the object I want to model, but it's not the same, I have other dimensions because I want to make it more compact.

[davebYYPCU]

Not enough control of the shape in those sketches.

Make a sketch on ZY Plane, connect the shape at this location  using Project > Intersect for the 4 points to connect to.

When you do that, still won’t work, because 2 sketches have sharp points.

Circle can’t loft to the horizontal sketch, if the corner is aligning with the same plane.

Use Surface Loft, and small sections at a time.

Might help….

[TrippyLighting]

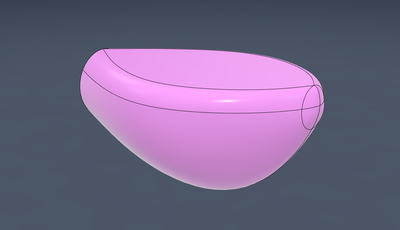

How's this for a start?

[nectarietotan]

That's very nice looking, like what I wanted, how did you do this?

[TrippyLighting]

I attached a model to my last post. If you step through the timeline, you should be able to see how this was modeled.

[nectarietotan]

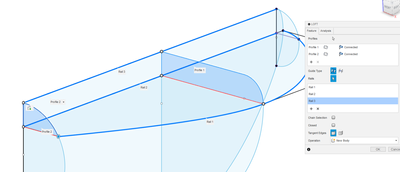

Thank you for your help till this point, I still have a problem, I tried @TrippyLighting method using the timeline from the 3d model he provided, and it worked, but I don't get an exactly nice shape when doing the fillet, I don't quite get continuation for the first face/profile. I divided the upper body by the second face/profile and then tried to loft the upper section of the first face/profile and the newly divided section, but the loft is not nicely executed.....What should I do?

[TrippyLighting]

---

@nectarietotan wrote:

What should I do?

---

Share your model.

The screenshots indicate that you did not understand or follow the workflow in my model 😉

[nectarietotan]

Here is the model.

[TrippyLighting]

Your model does not have a timeline, which does not allow me to reproduce your workflow.

[TrippyLighting · Accepted solution]

The sketch inputs you have created don't lend themselves to a fillet.

I used a surface modeling approach and simply had to guess what you're after.

If you want to actually make a physical artifact, then would strongly recommend that you use a caliper to measure key dimensions and then fully constrain and dimension your sketches!

Edit: I've replaced the attached model with one that has a timeline 😉

[nectarietotan]

Thank you so much! I didn't know I could use surface modelling, I only worked with solid, you did exactly what I wanted to do!
