symmetric in box mode == symmetric in smooth mode??

symmetric in box mode == symmetric in smooth mode??

Anonymous
Not applicable
841 Views
4 Replies
Message 1 of 5

symmetric in box mode == symmetric in smooth mode??

Anonymous
Not applicable

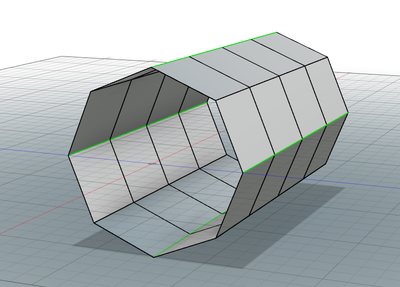

When I draw a polygon and extrude it I get following. The selected edge was added by Fusion.


After removing that selected edge and uncreasing the remaining ones I get a result I don't understand:


While the extruded surface is symmetric in box mode. It's not in smooth mode. What exactly does that tell me?



Edit: When I also remove the face that was split by the edge Fusion added, and draw a new face, the surface is symmetric in smooth mode, too, I just realize...

0 Likes
Accepted solutions (1)
842 Views
4 Replies
Replies (4)
Message 2 of 5

colin.smith
Alumni
Alumni

Hi @Anonymous,



Part of the issue I think is that there is a difference in degree between the curve and surface.

But part of this seems to be a bug with symmetry.



What is the desired outcome that you are looking for?





Colin Smith
Sr. Product Manager
SketchBook
Alias Create VR (aka Project Sugarhill)
Automotive & Conceptual Design Group
0 Likes
Message 3 of 5

Anonymous
Not applicable

I guess I am a bit lost in translation and the more I try to explain it properly the more things sound complicated...



I accidentaly extruded a polygon with 7 sides with 8 faces. When I now remove that (selected) edge, uncrease the remaining edges and go to smooth mode, the whole surface is not symmetric, while (I guess) it should. (It's attached.)




But when I remove the face, that was split by the edge I just removed, too, and re-draw that face, then the whole surface is symmetric in smooth mode.





@colin.smith wrote:



What is the desired outcome that you are looking for?



The question I right now have, is, when I remove the selected edge in the following situation, are the two faces supposed to be similar or is it making a difference that the left one had two edges split?


0 Likes
Message 4 of 5

colin.smith
Alumni
Alumni
Accepted solution

Hi @Anonymous,



You didn't accidently extrude with the extra faces.  Our curves are 5th degree and the T-Spline bodies are 3rd degree.  So there is a fitting that has to happen to get the 3rd degree T-Spline to match the curve you created.  Part of that match process introduced the extra faces.



Another way to approach the problem is to skip the creation of the curve and create a T-Spline cylinder with the required size and diameter and then crease the edges.



Hope that helps.



Colin





Screen Shot 2017-01-13 at 12.23.30 PM.pngScreen Shot 2017-01-13 at 12.23.51 PM.png















Colin Smith
Sr. Product Manager
SketchBook
Alias Create VR (aka Project Sugarhill)
Automotive & Conceptual Design Group
Message 5 of 5

Anonymous
Not applicable

Thank you, @colin.smith.

0 Likes
