Hello! I would want to view two position of the model in the drawing in order to measure angles and distances. This positions are set as joint limits in the model. Please see below the first position (0° of the joint).
Second position (90° of the joint)

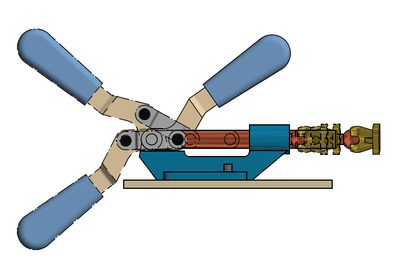

So I want to see something like this.
You can see three positions in the drawing. How can I make this in Fusion 360?
Thanks in advance!
Fusion 360 does not have the ability to show multiple View Representations in a 2D Drawing where one assembly position is superimposed over top of another. The only close approximation would be to create multiple "unique" 2D Drawings for each position. Please key in on the word unique.
John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
You can do a lot of things in Inventor you cannot do in Fusion 360. Inventor is Autodesk Premier 3D package and the subscription price reflects it.
John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
