I can't give arc size in technical drawing

[nferhatoglu]

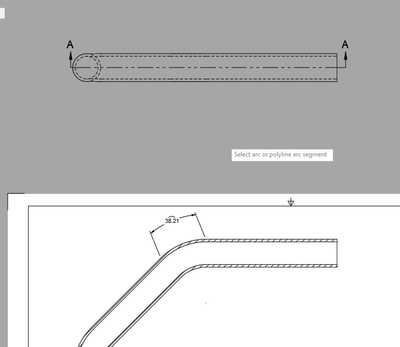

I can't give a spring measure to the edge of the elbow I showed in the picture.
Is there any way or solution to this?

 

 

[HughesTooling]

Can you share the f3d file please? One thing to check is is it really an arc and not a spline? Can you add a radius dimension?

[TheCADWhisperer]

@nferhatoglu

The STEP file that you Attached here is not the same geometry illustrated in your 2D drawing?

[nferhatoglu]

It doesn't matter, both are the same.
I can give other measurements, but not the spring size. I edited the message.

[HughesTooling · Accepted solution]

I guess this fails because that is a tangent edge.

I found a workaround using a section view. You can place the source view off the sheet by the way. I would like to tag someone in from AutoDesk but it seems like the elves are busy breaking the forum again!

Mark

[nferhatoglu]

Thanks Mark, that's a nice solution.
However, when I tried this arc measure in other programs, I was able to give it all, including FreeCAD.

I think authorized friends will solve this simple issue, we are waiting.

[HughesTooling]

@ClintBrown3D Is this a known problem?

Thanks Mark

[harry.doldersum]

It's another workaround, but by copying the component to a sketch & activating the sketch in the 2D drawing, you *could* dimension the elbows as required.  Switch the body off, to place the elbow dimensions - switch it back on when done.

Please see attached.
