how to join a hollow component with a solid one

[markvk42]

Hi,

Ive designed a stepper motor housing that i want to "push" into another component which is solid. When i try to do this the part of the solid comp that projects into the housing remains instead of being cut away.

i have made a solid balnk of the housing (tool) which i can use to cut and then insert and  join the hollow housing in the hole but it seems a long winded way around the problem and i cant help but feel im missing something obvious.

is there a way of doing this simply?

[g-andresen]

Hi,

please share your file.

File > export > save as f3d on local drive > attach to next post

günther

[markvk42]

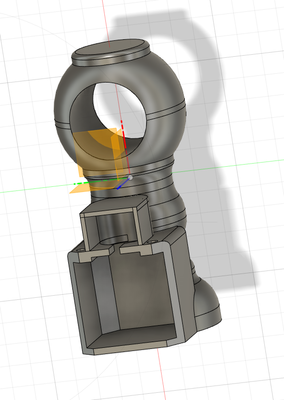

Thanks please find attached the file. This is what happens hppens i try to join them, the solid object comes through the hollow one, and i want the hollow component to displace the solid mass

[jhackney1972]

It is not real clear, from your screen capture where the two bodies are in relation to each other.  I took a whack at it and the model is attached.  If it is not correct, please define your desired results better.

[jhackney1972]

And it you want the two combined as one body, the model is attached.  The previous file was not combined.

[markvk42]

Hi John,

Thanks for taking the time to help. unfortunately thats not what im trying to achieve. I have actually done what i need to do but im certain theres a more efficient way of doing it! what i need to do is insert a hollow object into a solid one so that the hollow object removes the mass of the solid one and replaces the solid mass with a shaped void that i can insert a motor into.

This is what im after, but to do it i had to create a solid component the same shape and dimensions as the hollow one and use it as a tool to cut the main component and then move the hollow component into the void created by the solid one. There must be a simple way of inserting a hollow piece into a solid one!

[tanwinghoe1983 · Accepted solution]

Hi, I would like to propose 2 methods where you do not need to create a new component. For the sake of simplicity, I have created 2 bodies instead of components. I have also replaced your models with a simple cylinder and a shelled out cuboid.

2 combines

• Use the combine tool with the cuboid as the cutting tool to cut into the cylinder (target). Check the keep tools option to keep the cuboid.
• There will be a useless chunk of solid remaining which you can hide or delete.
• You will need to perform another combine to join the 2 remaining bodies together.

Boundary fill

• Select both the cylinder and cuboid as tools.
• When selecting cells, check all cells except for the chunk of cylinder that resides within the cuboid.
• Set operation to new body and check remove tools.
• This command combines all the resultant bodies and remove the excess in one step.

I have attached the files here. Hope this helps.

Wing Hoe

Fusion 360 School

https://www.youtube.com/fusion360school

[markvk42]

Hi,

Sorry about the late reply, ive been away from my computer for 2 weeks. Ive tried your methods and both work with freshly created bodies. Thanks.

However for some reason it doesnt work with the bodies/components that i created. i must have done something to them.

Ill continue to play with them and see what happens, thanks for you help.
