Hi members, i have a small component,
the problem here is that i need to extend the top model to the base model in a straight line or some angle like 1º
i dont want to use loft because it connects the edges.
in powershape i use draft to achieve, but i cant do it fusion

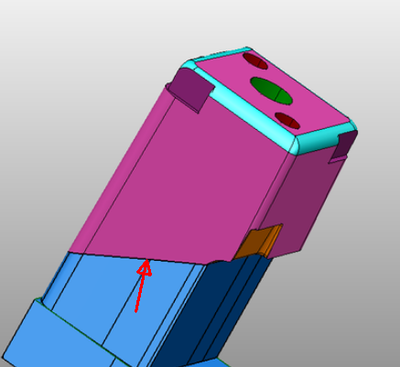

i want to achieve this.
Can you show the modified version from powershape? Do you still want the angled bottom on the base of the top model or do you want it parallel to the top face?
Is this face still angled after extending.
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Hi @n_brandao,
You want to extent the angle face?
I don't know if this is what you are looking for.
Watch the timeline for the steps I made.
If my post answers your question Please use Accept as Solution & Kudos This helps everyone find answers more quickly!
Met vriendelijke groet | Kind regards | Mit freundlichem Gruß
Marco Takx
CAM Programmer & CAM Consultant
Hi @n_brandao,
Hier the steps in a movie.
You can do this also with the chain selection ON for all the blue faces.
If my post answers your question Please use Accept as Solution & Kudos This helps everyone find answers more quickly!
Met vriendelijke groet | Kind regards | Mit freundlichem Gruß
Marco Takx
CAM Programmer & CAM Consultant
These fillets are stopping Fusion from being able to move the bottom angled face.
If you can delete them then add back after extending the part Move-Face will work.
Part with fillets removed.
Then extend using Move. Just step along the timeline to see what I've done. No I can't make a video.
File's attached. You just need to add the fillets back.
