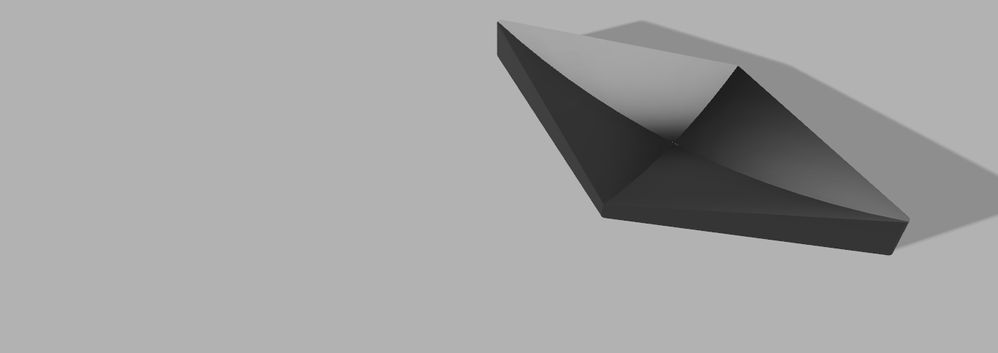

How I draw this
Hi,
Use the Patch command from the Patch environment to create faces, and then stitch them to get a solid body
Regards
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Here is a screencast to show you what I mean
If you have only lines, and no profiles ( because the sketch is in 3d ) then turn of the chain selection in the patch dialog box and select the lines you want to create a patch between them
Regards
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
could you please attach the file so that I can try
Regards
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Before attempting to design anything with Fusion 360 you may want to go through the video tutorials in the Support and Learning sections.
I am not sure these written documentation is available in any other language so Videos might be of more help to you.
You deleted the reference geometry that these sketch were drawn/sketched on and have 4 yellow highlighted items in the timeline.
Edit : use the loft between point and middle curve to make the lines you wanna get rid of 1 line, but I don't think that you can get rid of the whole thing
I'll make a screencast
Regards
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

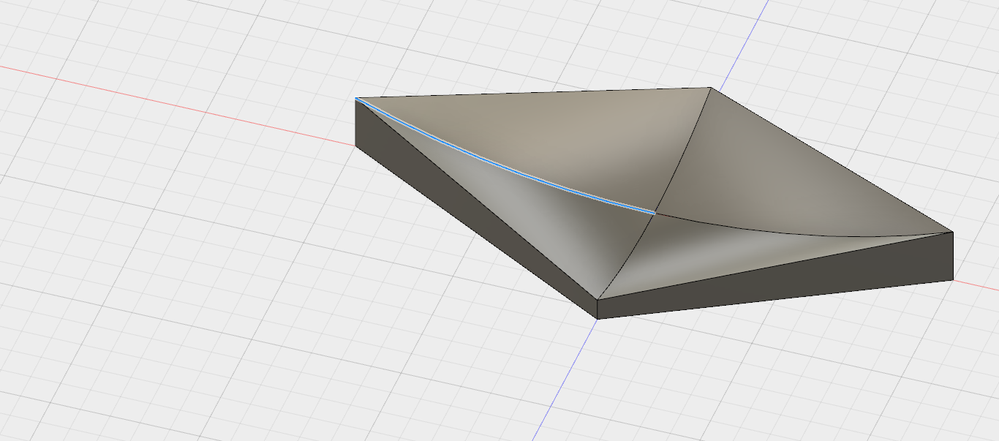

Here is a screenshot that shows that you need a fillet ( in the black areas ) in order to get something smooth like this
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
@ernkla wrote:
Sorry but it not work and how ı infill this
When you say it doesn't work, do you mean you can't create or is it not what you want?
And about the fill, use the stitch command in the patch worksapce
Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Accepted solution
Check this, it will help you do it
