Help with Sketching a drumstick Model

[thedoncutta]

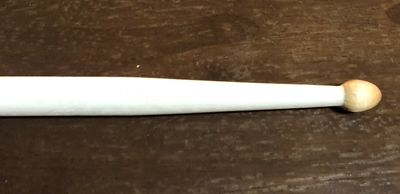

Hello, can some one post a video modeling out the specs on this drumstick. I’m new to fusion and I’m working on this project with my percussion students. Thanks

Drumstick Specs:

Length: 17.1 inches

Diameter: .72 inches

Shaft: 12 inches

Taper: 4.25 inches

Neck at Bead: .39 inches

Bead length: .85 inches

Bead Diameter: .62 inches

Bead Shape: Taj Mahal

[davebYYPCU · Accepted solution]

Draw the outline with your dimensions, change centre line to Centre line type for diameter dimensions.  Edit or add the appropriate spline for the tip.

Might help......

[thedoncutta]

 

 

 

[thedoncutta]

Thanks, looks easy I need crash course.

[laughingcreek]

start with a hand (gasp) sketch and label it with the dimensions from your spec. post a pic of that here.

[davebYYPCU]

Sketch was done before the pics, I missed the bead diameter if it was not an edit,

@thedoncutta use a 3 point spline now to dimension the bead diameter.

Might help....
