Help to build domes over curved body

[diarcosb]

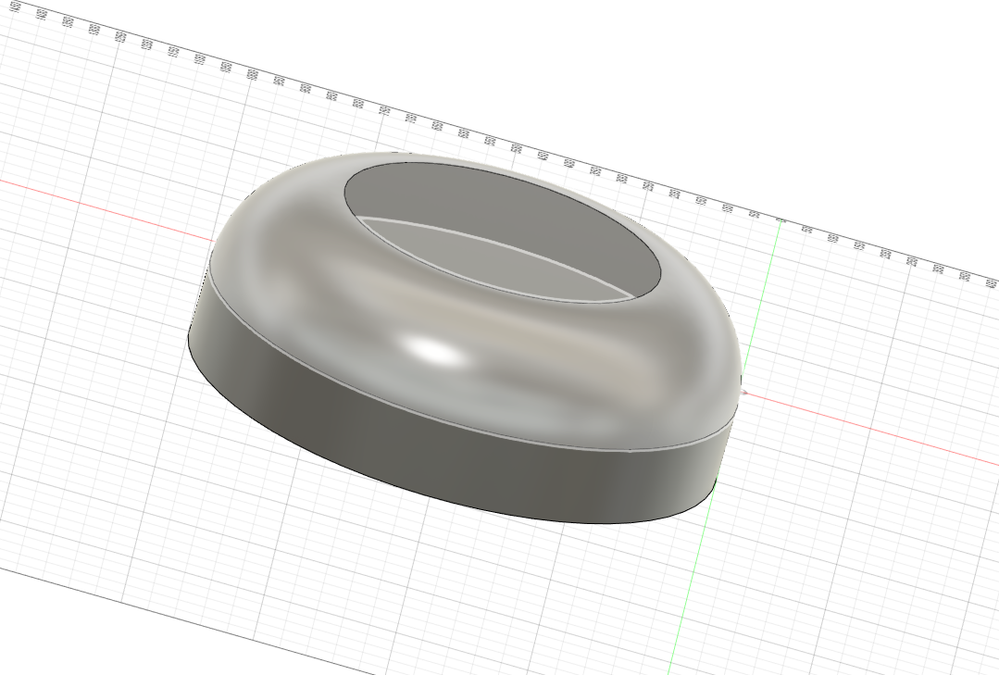

Hi guys i need a simple design of a plane top dome with mini domes over it's surface.

i create the main body, but i tried to project circles over the surface but then i realized that circles makes cilinders, so i would appreciatte your help to make this,

sorry for my bad english.

[TheCADWhisperer]

Step 1. Start Over.

Step 2. Turn on Capture Design History.

Step 2b.  Attach new file here for Step 3 and 4.

[dsouzasujay · Accepted solution]

Hi @diarcosb

As @TheCADWhisperer suggested we need to use Parametric Modelling.

Also few more things to add,

• Insert the mesh files to the origin.

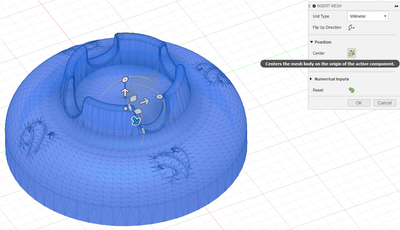

  • 'Insert Mesh' and Hit on 'Center'

• Fully Constrain the Sketches, Add dimensions so the blue lines turn black

Creating a sketch on a surface is not possible, but it can be achieved by creating a plane at an angle.

Created below video: Hope it helps

Screencast Video: https://autode.sk/3hAnYQF

[diarcosb]

thank you so much!
