Flange tool won't select desired edge

mattherrick95
Observer
Observer

I'd like to connect the top and bottom flange to the front flange but I can't select the bottom edge of either like I did with the piece that is detatched. Please help

0 Likes
Accepted solutions (1)
1,553 Views
7 Replies
Replies (7)
Message 2 of 8

dominik_zarczynski
Autodesk
Autodesk

Hello Matt,



Is that what you wanted to achieve?

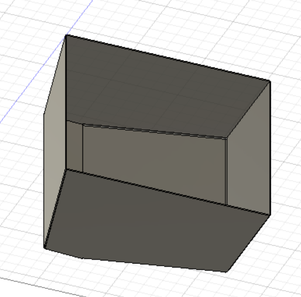

3D:




Flat pattern:




If yes, let me know so I can describe in details how I did it.

If no, please explain (best with print screens) so I can better understand.





If my answer helped you, please click Accept Solution. Thanks!

Dominik Żarczyński
Customer Technical Success

My Screencasts | Fusion 360 Webinars | Tips and Best Practices | Troubleshooting

0 Likes
Message 3 of 8

user015M86Y
Advocate
Advocate

Hi, can you describe how you did it. Thank you

0 Likes
Message 4 of 8

mattherrick95
Observer
Observer

This is what I'm looking for but with flanges

0 Likes
Message 5 of 8

TrippyLighting
Consultant
Consultant
Accepted solution

The attached model contains a way of modeling the finished form and then converting that into a sheet metal body.

However, in order to generate a flat pattern, each of the two halves has to be a separate component.

So after the 3D sketch, you need to create two (empty) components,  one for the top and one for the bottom half.

Then activate each component before doing the sheet metal stuff.







EESignature

0 Likes
Message 6 of 8

mattherrick95
Observer
Observer

Thankyou so much! It worked out great.

0 Likes
Message 7 of 8

dominik_zarczynski
Autodesk
Autodesk

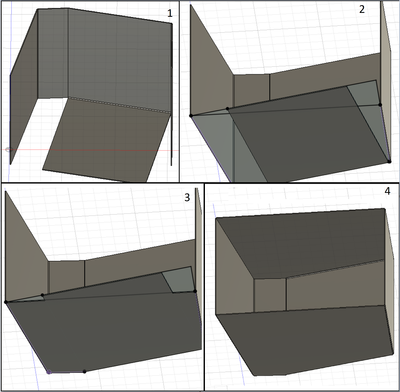

1) Create a flange from this edge.

2) Create a sketch on this flange using Project function in a sketch and extrude


3) Cut the unnecessary material with extrude.

4) Mirror what you did. To do that - first construct midplane.




If my answer helped you, please click Accept Solution. Thanks!

Dominik Żarczyński
Customer Technical Success

My Screencasts | Fusion 360 Webinars | Tips and Best Practices | Troubleshooting

Message 8 of 8

johnsonshiue
Community Manager
Community Manager

Hi Folks,



Here is another solution using a different modeling technique. Basically, you may focus on creating the non-sheet metal body. Round the sharp edges with desirable radius. Then create a zero-offset surface (leave an opening). Lastly, thicken surface logically so that the part can be unfolded.




Many thanks!



Johnson Shiue (johnson.shiue@autodesk.com)
Software Test Engineer
