Flange on a cone problem please help

[Anonymous]

Hi guys have a very simple problem here but cant seem to see how to get it to happen.

In the attached file I have a section of a cone which I can get a flat pattern for. I would like to add a flange from the profile in sketch 5 and join it to this cone so I can make four of these and bolt them together. I can create A flange from profile in sketch 5 but the availability to "join" to the cone section is not there.

Can anyone help me with this?

Many thanks

https://a360.co/2K6UsEg

[etfrench]

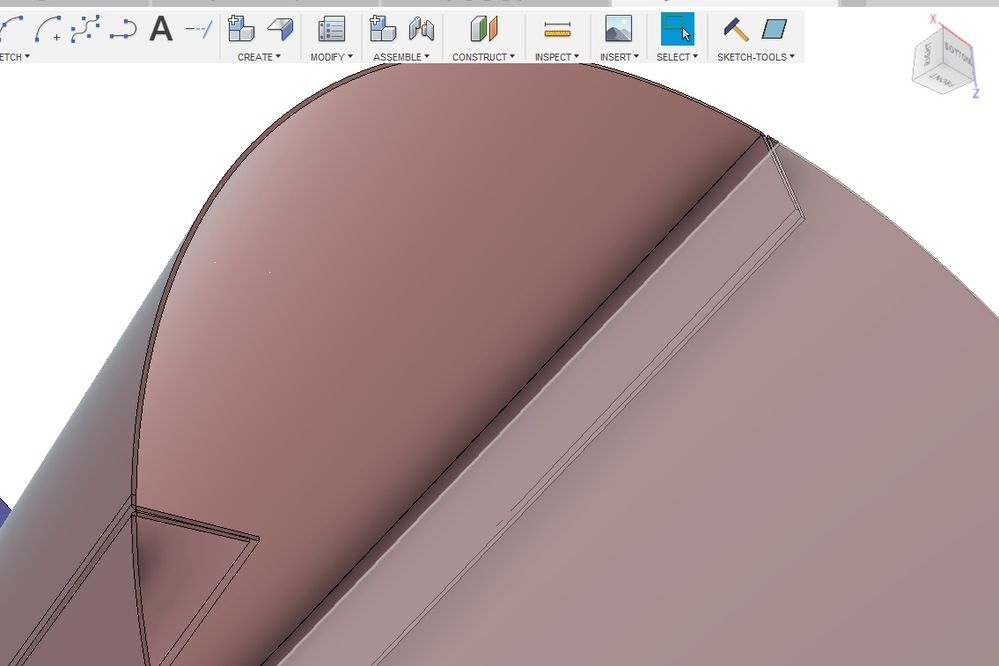

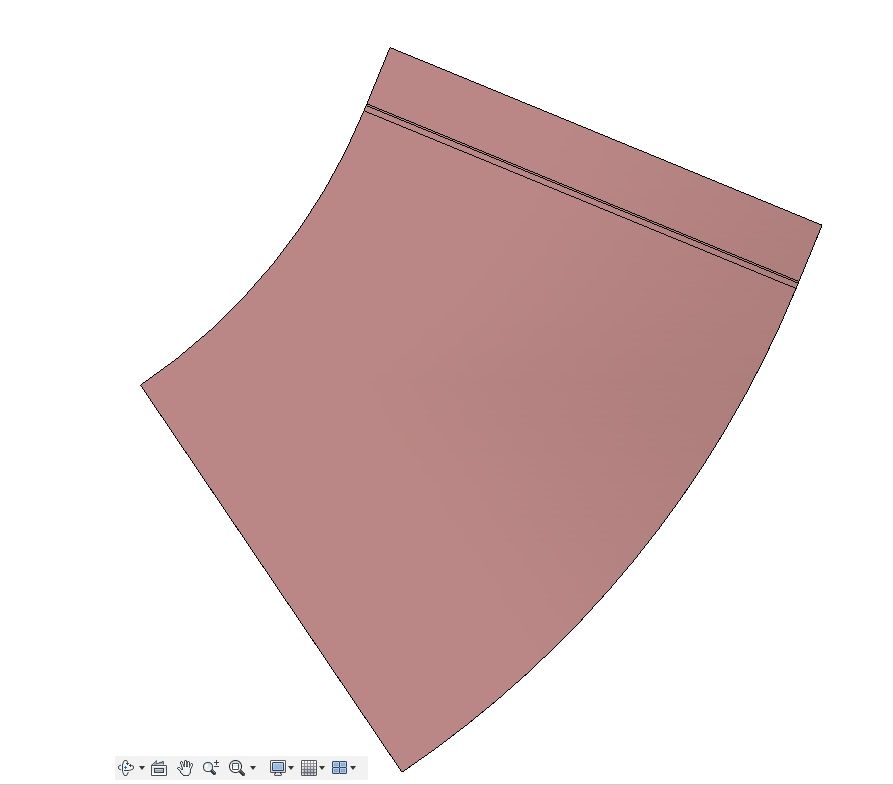

I extruded a short flat on the other end of the cone, then created a flange at 90 degrees on that.  The flange needed to be created towards the outside, then flipped. The extrusion probably only needs to be as wide as the bend radius.

[Anonymous]

Can you show me your file please? Not quite sure how you mean

[etfrench]

File was attached in the previous post.

[Anonymous]

Nice one cheers for that! Any thoughts on if this would work with both
sides?

[etfrench]

Yes, it works for the other side as well. Just extrude it slightly more than the bend radius (2mm).

Note: You'll need to adjust the swept angle of the cone in order for the sections to meet with no gap.  You may also need to adjust the angle of the flanges a few degrees.
