embedded text around a cylinder

RichardGerSpatial
Participant
Participant

I'm sure this can be done, but I'm not sufficiently advanced with Fusion 360 to figure it out, unfortunately.



I'm making a medal for a friend, who is going to achieve a major milestone in a couple of weeks. I've got most of it done, but I'm stuck with the last part. The medal is shaped like a coin, and like many coins it should have text sunken into the cylindrical surface at the edge. Ideally, and also like a coin, this cylindrical edge should be milled as well, but that is a secondary problem.



The font I'm using is not a standard font (it's Celtic, since he's an Irishman) so, since Fusion 360 can't find it in my font library, I've made a dxf file with outline characters using Illustrator. This is fine for the front and back faces, where I can import them as sketches.



But I can't attach them, and nor can I make a regular sketch, to/on the cylindrical surface at the edge of the medal.



Obviously I can attach the file as a decal, but I can't use that to make an extrusion (with negative depth).



Am I going the wrong way about this? What is the best method to attach a dxf file (or anything else with vector information) to a cylindrical surface so that I can afterwards use it to emboss the text?



Thanks,

Richard







0 Likes
Accepted solutions (1)
1,287 Views
5 Replies
Replies (5)
Message 2 of 6

SaeedHamza
Advisor
Advisor

Hi,



What you did with illustrator is a nice approach to get the font you want as a sketch, the only thing that is left to do is to make it cylindrical, the font I mean

The best way to get that cylindrical sketch is by using the sheet metal workspace, so if you could provide a picture of the final result you're looking for, I'll make a screencast for you on how to make it



Regards

Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 3 of 6

etfrench
Mentor
Mentor

Wrapping text around a cylinder comes up quite frequently.  Here's one of the latest threads.

ETFrench

EESignature

Message 4 of 6

RichardGerSpatial
Participant
Participant

Hi Saeed,

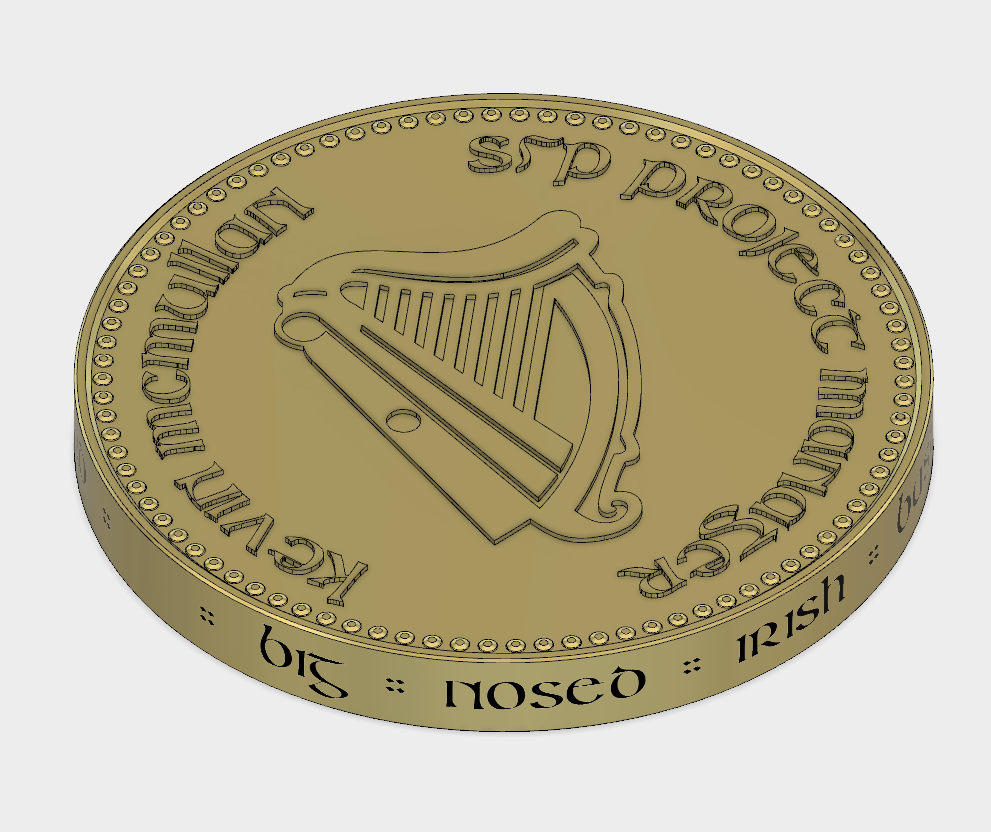

thanks for the offer. Here is a screenshot showing the item so far. The Irish harp is also a dxf import as is the motif on the other side.



The text I want to add is shown in black around the edge. Here it's only a decal though. Having imported the sketch I then need to extrude it, cutting into the material.



A final step, though not really necessary, would be to add milling (ie corrugations) to this cylindrical surface).



Thanks,

Richard



Screen Shot 2017-10-03 at 11.51.40.png



0 Likes
Message 5 of 6

SaeedHamza
Advisor
Advisor
Accepted solution

Here is a quick screencast on how to do it

I hope it helps



Regards







Saeed Hamza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 6 of 6

RichardGerSpatial
Participant
Participant

Thanks Saeed, that did it. Sorry for the delayed response.



I hadn't explored the sheet metal tools, so now I think I will 😉



cheers,

Richard
