Discrepancy in dimension (Design vs. Drawing)

YouElz
Contributor
Contributor

I'm relatively new to Fusion 360, having recently switched from Sketchup and still learning my way through.

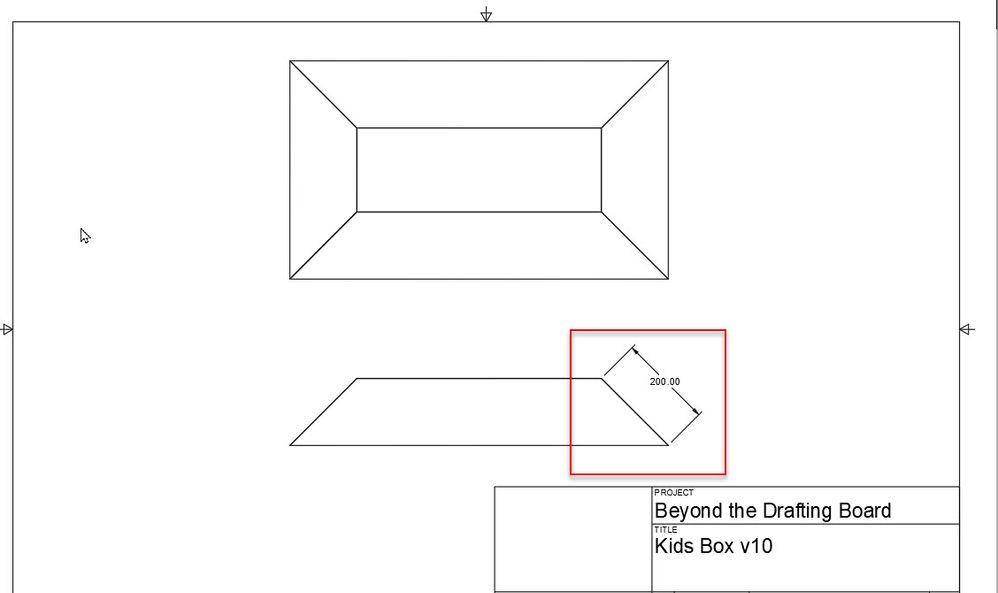

While attempting to create a drawing (Part List) for a simple shape, I noticed a slight discrepancy between the linear dimension shown in the Drawing and the actual design measurement.  The difference is small but noticeable.



I would greatly appreciate your assistance in troubleshooting this problem.









0 Likes
Accepted solutions (4)
1,353 Views
15 Replies
Replies (15)
Message 2 of 16

g-andresen
Consultant
Consultant

Hi,

please share the file for reply



File > export > save as f3d on local drive  > attach to post



günther

0 Likes
Message 3 of 16

Warmingup1953
Advisor
Advisor

Perhaps one is a face dimension (200) and one is a dimension in axis Z?

0 Likes
Message 4 of 16

YouElz
Contributor
Contributor

I have attached the file to the initial post.

0 Likes
Message 5 of 16

YouElz
Contributor
Contributor

Well, I am not sure. In the sketch, it's 200 mm.

0 Likes
Message 6 of 16

Warmingup1953
Advisor
Advisor

I'm not seeing what you're seeing:200.jpg

0 Likes
Message 7 of 16

Warmingup1953
Advisor
Advisor




I'm not seeing what you are seeing but I agree something is amiss:




0 Likes
Message 8 of 16

jhackney1972
Consultant
Consultant
Accepted solution

You 2D Drawing view is not "exactly" aligned so you are getting a small error.  If you create a aligned view, it will dimension properly as shown in the attached screen capture.





Aligned Dimension.jpg

John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 9 of 16

YouElz
Contributor
Contributor
Accepted solution

Thank you for the reply...



I have selected the top view for the Base View and have not realigned the drawing at all. Would you please provide some guidance to ensure the propper alignment of drawings? or point me to a documentation or online tutorial.



Thank you,

0 Likes
Message 10 of 16

jhackney1972
Consultant
Consultant
Accepted solution

Take a look a the video for one process to get what you need.  There are others but this one fits you situation, I believe, the best.  Do not forget to select the Accept Solution icon if this solves your issue.



John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 11 of 16

YouElz
Contributor
Contributor

Thank you @jhackney1972  for your time making the video. It was very well articulated. I believe I need to be conscious of view alignment in 2D drawing.



Thank you gain.



0 Likes
Message 12 of 16

scottwreynolds
Observer
Observer

This is great, but how did you determine what piece was at an angle? For example, if my dimensions differ between my design and my drawing, how do I figure out what component or body is causing the issue?

0 Likes
Message 13 of 16

jhackney1972
Consultant
Consultant

You need to attach the MODEL giving you an issue and also point out which dimensions do not agree.



If you do not know how to attach your Fusion 360 model follow these easy steps. Open the model in Fusion 360, select the File menu, then Export and save as a F3D or F3Z file to your hard drive. Then use the Attachments section, of a forum post, to attach it. If needed, ZIP a F3Z file.

John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 14 of 16

scottwreynolds
Observer
Observer

Thank you very much for your response. I will preface this with I am not great with Fusion, so I appreciate your help. I have attached the model.

The issue is I am unsure of any of the dimensions in the drawing now. Here are a couple examples:
1. Model - 1/8



2. Drawing - 1/4


second example:

1. Model - 20 3/8


2. Drawing - 20 1/2






0 Likes
Message 15 of 16

jhackney1972
Consultant
Consultant
Accepted solution

You are using Fractional Dimensions and your Linear Precision is set to low, you have it probably set to 1/4 and it should be set to a value smaller than your smallest dimension.  I would set it to 1/32 and forget it.  What it is doing is rounding to the nearest linear precision giving you a false dimension.  Please remember, you must set the Linear Precision BEFORE placing the first dimension or double click on the previous dimension and update.



You are using a Forum post that is old but if my answer stills solves your question, you can please select the "Accept Solution" on my post, or ask further questions.



John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 16 of 16

scottwreynolds
Observer
Observer

Wow, thank you so much, I really appreciate the quick response and your help!! Unfortunately I do not see any way to click ACCEPTED SOLUTION as I am not the original poster, sorry.
