Designing of a rectangular coil with some turns (let’s say 100) and layers( let’s say 5).

MD_TOUSIF_ALAM
Explorer
Explorer

I want to do a magnetic field simulation for a rectangular coil. So I want to design a rectangular coil in fusion 360. I know how to design a rectangular coil in fusion but the coil I want to design is little different. I also want layer on top of the coil. I am not able to add layers please someone help me. It would be really helpful for me.
thanks

0 Likes
1,888 Views
18 Replies
Replies (18)
Message 2 of 19

TrippyLighting
Consultant
Consultant

Can you share your model?

If so, please export it as a .f3d file and attach it to a post.


EESignature

Message 3 of 19

etfrench
Mentor
Mentor

What is the difference between a turn and a layer?

ETFrench

EESignature

Message 4 of 19

MD_TOUSIF_ALAM
Explorer
Explorer

I don’t have model. I want to design a coil like that so that I can export it some software (let’s say cst studio) for magnetic field simulation

0 Likes
Message 5 of 19

TrippyLighting
Consultant
Consultant

@MD_TOUSIF_ALAM wrote:

I don’t have model. I want to design a coil like that so that I can export it some software (let’s say cst studio) for magnetic field simulation


Then I suggest you make one and upload it and we'll move forward from there.


EESignature

Message 6 of 19

Warmingup1953
Advisor
Advisor

What about a simple hand-drawn sketch to at least get your core( see what I did there?) idea across to us.

Message 7 of 19

MD_TOUSIF_ALAM
Explorer
Explorer


0 Likes
Message 8 of 19

etfrench
Mentor
Mentor

Well, start by drawing a line with the outside (or inside) length of the rectangle.  Add another line at 90 degrees, then one parallel to the first, then one 90 degrees the last which is the width of the wire shorter than the second wire.  Continue this until you have 100 turns.  Use this as the path in Plane along Path.  Create a sketch on the path with the profile of the wire.  Sweep this along the path.  Rectangular pattern for the number of layers.








ETFrench

EESignature

Message 9 of 19

MD_TOUSIF_ALAM
Explorer
Explorer

Reference to the figure, suppose I have a long wire starting point A , after making 9 rectangular loops(sidewise)

i want to wrap the wire on top of the 9th loop, then 8th loop , similar way upto 1st loop (I.e wrapping IMG_2870.jpegin the backward direction). Then again wrap the wire on top of the 1st, then 2nd upto the 9th loop( forward direction)

0 Likes
Message 10 of 19

Warmingup1953
Advisor
Advisor

It looks better from afar than close-up...My attempt using Emboss to create a path for the "Slope" failed due to incorrect geometry...Coil.jpg



and of course, the step out to subsequent layers and wind patterns will ad complexity...There has to be a better way I hear myself saying!



It is one Solid body but I guess it will need to have some tolerances so a wire of considerable length is created.



coil 2.jpg

Message 11 of 19

etfrench
Mentor
Mentor

Try mirroring that, then use a joint to position it.  Or do a rectangular pattern then add a 'U' shape to connect each.

ETFrench

EESignature

Message 12 of 19

MD_TOUSIF_ALAM
Explorer
Explorer

Okay let me try.

0 Likes
Message 14 of 19

Warmingup1953
Advisor
Advisor

Align helps but tedious and avoidable I'm sure!Coil3.jpg

Message 15 of 19

MD_TOUSIF_ALAM
Explorer
Explorer

Thanks I will try to do

0 Likes
Message 16 of 19

TheCADWhisperer
Consultant
Consultant

Is there a reason you need complex detailed geometry - or will a cosmetic texture that "looks right" suffice for your design.

0 Likes
Message 17 of 19

Warmingup1953
Advisor
Advisor

Understood. Partly easy ...mainly difficult in Fusion 360 for me at least! The Crossovers and/or the step out to the next layer.




0 Likes
Message 18 of 19

Warmingup1953
Advisor
Advisor

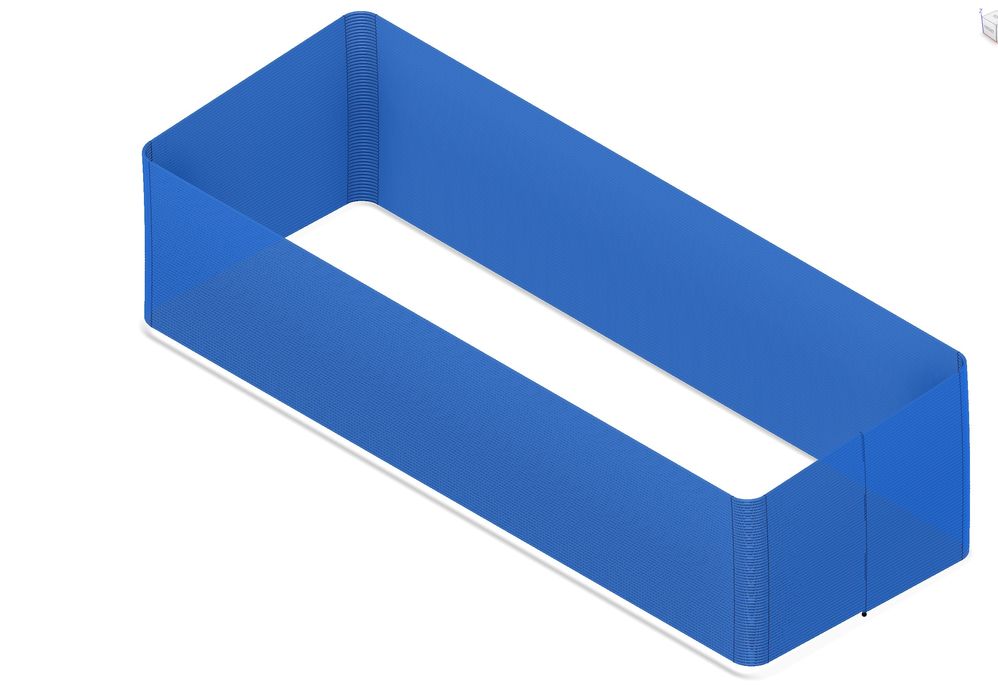

Does this .STEP file work in your "other software"?



One Solid Body:




0 Likes
Message 19 of 19

HughesTooling
Consultant
Consultant

In this post I demonstrated how to use a Swept surface with a twist to create a helix then trim to a helical rectangular form.




Mark

Mark Hughes
Owner, Hughes Tooling
