Cyan Lines on Projected Geometry on a Curved Surface

[vishnumaiea]

So I was trying to project a feature to a curved surface that is not aligned to any axes. I created the feature by making a tangent plane (tangent to the target surface) and creating a sketch on it. I was able to project this feature onto the surface, but when finished, the sketch appears as cyan colored lines instead of a rectangular face that I could push-pull.

Projecting to surface

Image 1 : Projecting feature to surface

Image 2 : No new face created on the projected surface.

If someone could shine some light on this, that would be appreciated.

[JDMather · Accepted solution]

Split Face

or Patch and Thicken

[g-andresen]

Hi,

Instead of split face and press/pull you can use the extrusion tool.

1. Extrude from object

2. offset > Extrusion to object

depending on how the surface should look.

[vishnumaiea]

Ah! That worked. Thanks. Still, do you know what the cyan lines mean?

[vishnumaiea]

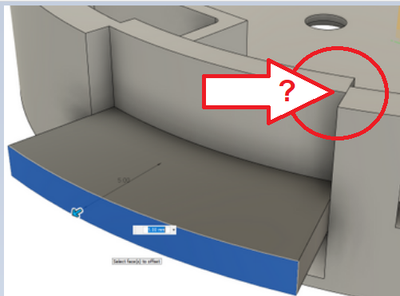

But here, the extrusion created doesn't follow the radial path of the curved surface.

Thanks for the reply anyway 🙂

[vishnumaiea]

But by creating a patch and thickening it, we can.

[g-andresen]

Hi,

---

@vishnumaiea wrote:

Still, do you know what the cyan lines mean?

---

projected and linked to the profile > is updated when the profile changes

günther

[JDMather]

I would be concerned about this.

Can you File>Export and then Attach your *.f3d file here for diagnosis?

[vishnumaiea]

Yeah, that's an artefact created when I used the extrusion tool. Only noticed it now. It was due to a bad sketch profile. I corrected it in the timeline.

Unfortunately, I can't share the design file.

[g-andresen]

Hi,

It also works without plane and sketch.
try it this way:

günther

[vishnumaiea]

Nice. Will keep in mind ✌️
