Adding Tolerance to Combine/Cut Operation?

jasonFUGEG
Explorer
Explorer

The plan is to make a paper-embossing stamp in Fusion360 to be 3D printed.  I've seen folks do this sort of thing before and wanted to try it out.



I'm able to create a an extruded rectangle, extrude some text from it, the extrude another body on top of it (intersecting the text) and combine->cut (keep tools) so I end up with a positive and negative form of the stamp text.



The issue is that I need to add in some tolerance to account for the thickness of the paper and the 3D printer tolerances.  I can't find a good way to go about this.  I tried exploding the text into outlines and offsetting but Fusion didn't like that.



It's possible this isn't the best program for this sort of thing, but it feels like something that Fusion360 ought to be capable of.



Any ideas?  thanks in advance!



-Jason

0 Likes
Accepted solutions (1)
1,175 Views
3 Replies
Replies (3)
Message 2 of 4

jhackney1972
Consultant
Consultant
Accepted solution

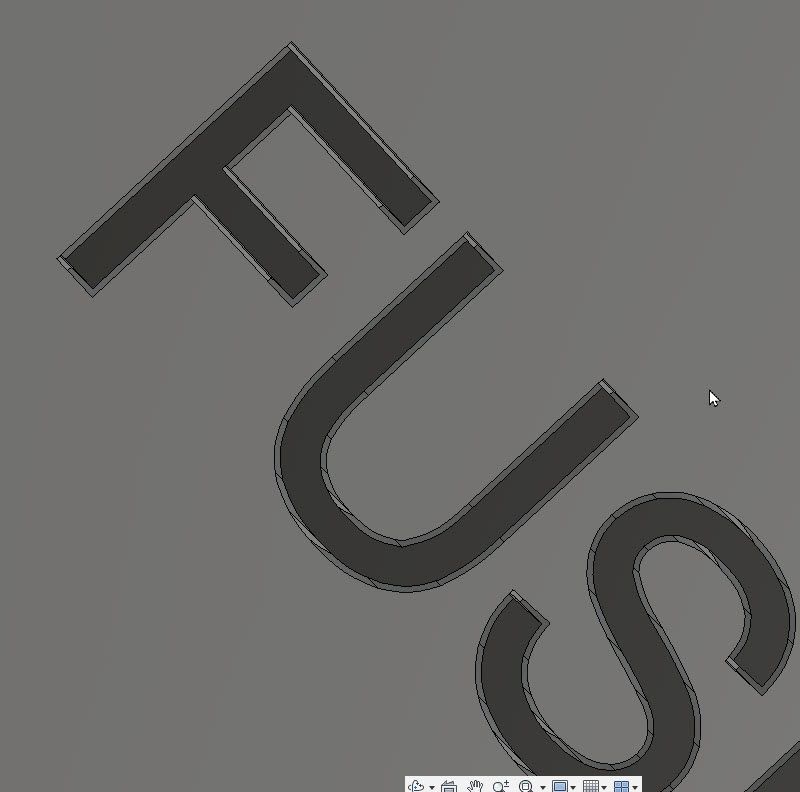

On the negative or positive model, your chose, use the "Offset Face" command, select all with a Window and add or subtract material, as needed, to give the clearance you desire.  Attached is a quick model to show you what I mean.  There is a 0.01" clearance between the letters and the negative body.




John Hackney, Retired
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 3 of 4

jasonFUGEG
Explorer
Explorer
Thanks! Is there a quick way to select all of the faces parallel to the XY plane while ignoring the faces on the Z plane? Or do you have to go in manually and unselect those?
0 Likes
Message 4 of 4

g-andresen
Consultant
Consultant

Hi,


@jasonFUGEG wrote:
 Or do you have to go in manually and unselect those?

try this





günther
