Hello!

When I combine these two bodies:

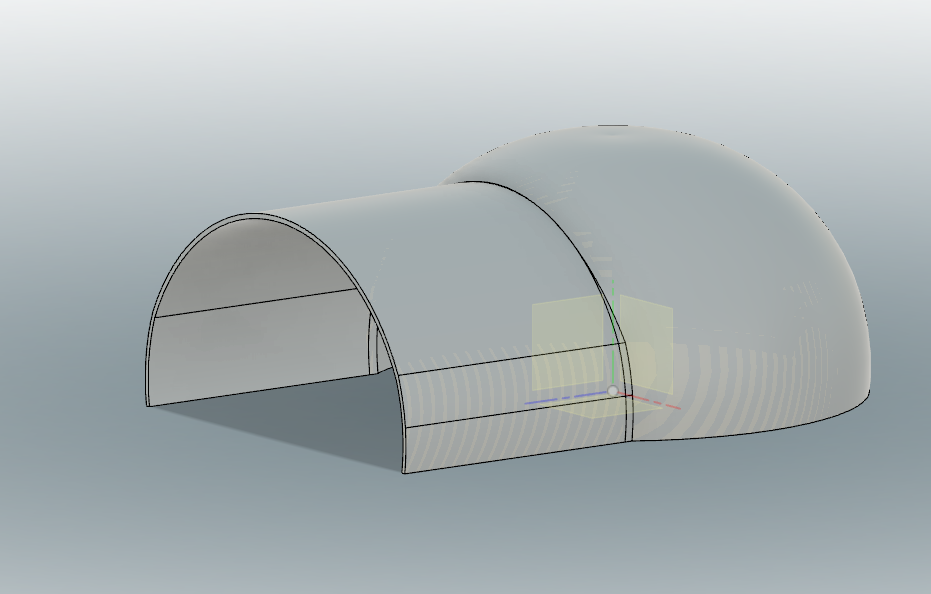

30-04-17 23-04-50.png

This sphere appears

30-04-17 23-05-09.png



What is wrong? it doesn't look like a new body.  How can I get rid of it? It happens the same if I choose "join" when extruding the arc.



Link: http://a360.co/2pMSQEP

Thank you!

0 Likes
Accepted solutions (1)
596 Views
3 Replies
Replies (3)
Message 2 of 4

TheCADWhisperer
Consultant
Consultant
Accepted solution

First thing I notice is that your Sketch1 is not fully defined.

When I add dimensions to the arcs - they do not appear to be logical (manufacturable) dimensions.



Next I notice in your image that the faces are not symmetrical?



Is something like attached what you are really after?

0 Likes
Message 3 of 4

jeff_strater
Community Manager
Community Manager

Definitely, @TheCADWhisperer's design is much cleaner and simpler.  If that meets your requirements, you should do it that way.



However, your method should work as well.  What you see is a graphics glitch that we will look into.  The geometry is not really there (if you export to STEP and re-import you will see that the model is OK).  However, the results that you get are clearly not acceptable, and shows us a bug, which we will look into fixing.



thanks for posting.



Jeff




Jeff Strater
Engineering Director
0 Likes
Message 4 of 4

cerolenia
Enthusiast
Enthusiast

Thank you! I will adjust accodring to my measurement based on your drawing 🙂

I'm glad I could also help while being helped 🙂
