Here's a add-in I've been working on:
https://github.com/caseycrogers/Dogbone
The add-in is intended to automate the tedious process of creating dog-bone fillets for wood joinery. Here is a convenient how to video showing how to use the add-in made by Taylor Stein:
I'm happy to hear any feedback! Please let me know if you find any bugs in the add-in and/or if you have any recommendations for improving its functionality. Feel free to contact me via e-mail at casey.rogers@autodesk.com or by simply replying to this thread.
Solved! Go to Solution.
Solved by zhijie.li. Go to Solution.
Solved by daniel_lyall. Go to Solution.
@casey.rogers if you can do something like the images and have the tool paths quick it may be something to do, if you cant get it to be done fast it will be a bit of a wast of time, you can get this program to do it flat, http://www.tailmaker.net/box-joints.html and it`s cheap.
I tried to do tool path`s it`s not that easy and it`s quite slow
you would be better of doing stuff for flat pack, and cabinet's`s a bit like what`s in inventor woodworking, even if you did nesting or something like that if you wonted to or are allowed to do stuff like that.
Would love a script or addon that can do something like this. Say select a edge, enter thickness and number of joints or spacing of joint and then it creates the joints along the selected edge. Hope this makes sense.
Brandon
that`s a laser cut path, sawbench or router there are a couple of ways to do that with a cnc router dogbones in the corner to fit the tool in and other section, or stand it up on it`s end but you get tear out.
attached file is a good way to do it its rounded
Hi,
I just downloaded your plugin and it looks great! However, I'm getting an error when I run it.
Please let me know if see what I've done that's causing this.
Thanks!
Matt
@mpulliam6CT22 I was having the same issue: you have to define a parameter named "cutter" and you'll get a better options window, but it then fails creating the dogBones with another error:
Sorry @casey.rogers, can you please help us here? I've not much experience with python to fix it myself....
if you look on the git page there is a conversation bit in there,someone posted how to fix it the. cutter is wrong it should be 0
Hate to dig up an old thread but I was looking for something to do these type of finger/box joints line the attached image for laser cutting. Sounded like there might be a solution here but I don't see if anyone ever created something to do it.
.
@GalacticOverlordFry I believe you should start another thread, which I will then follow in the hope something raises. This is about dogbones, something which intersects with finger joints when using routing/milling rather than laser cutting, but they are pretty different topics.
To your question, my solution so far is to use an online tool available at http://www.makercase.com/ to generate an SVG of the box, then import the SVG, extrude appropriately and use rigid joints to re-compose the structure: not the most straightforward process, but not the most tedius either.
https://github.com/scottkildall/Fusion360FJBox
Hi All,
I have installed the dogbone app and the icon displays but when I run it I have this message pop up.
Any ideas?
I cannot find a similar fault on Github or the Fusion library to help myself
Thanks
Jason
@jasonXE8HG Have a look on the GIT page there is a comment part it has in it how to fix it, There is a bit of code that needs changed
Hi,
I have the same problem or similar

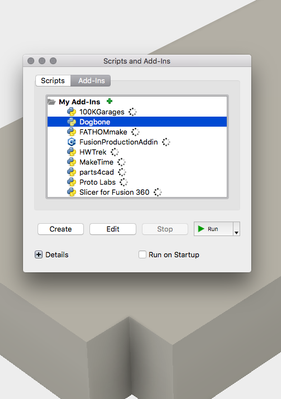

I installed this api in the right folder, when I check it in Fusion window, it appears
but when i want run it, it does not work
I have Mac 10.11.6
I have a same problem with Nester script
any advise ? thk very much by advance
I love the tool. I've been making the dog bones using a a parameter specified in the User Parameter table. But when I change the parameter is doesn't propagate through the dog bones so I have to delete them all and add them again with the new dimension. Am I missing part of the Add-In or is this a feature that is yet to come?
Hello I have been trying to add it and it shows in the add ins and shows its running but nothing shows up. I know a new menu should show up but nothing happens. Its it hidden somewhere. Do I need to turn something on. I got it yo work one time. I started to mess around with it and accidentally removed it from the toolbar. Ever since then I have removed and reinstalled it over and over. Even reinstalled autodesk. No luck! Please any advice would be great. Thank you
