how to dimension sketch elements programmatically?

[AagAag]

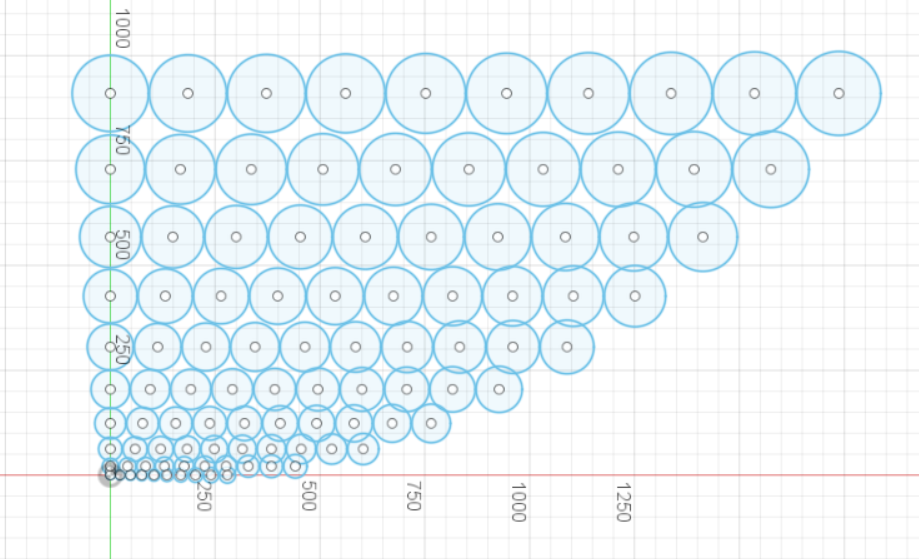

I am starting to play around with the python API. I have a small script that draws a bunch of circles. Might a good soul explain to me how I should dimension said circles programmatically, so that they will be fully constrained?

See:

import adsk.core, adsk.fusion, adsk.cam, traceback, math

def run(context😞

    ui = None

    try:

        app = adsk.core.Application.get()

        ui  = app.userInterface

        design = app.activeProduct

        unitsMgr = design.fusionUnitsManager

        unitsMgr.distanceDisplayUnits = adsk.fusion.DistanceUnits.MillimeterDistanceUnits

        # Get the root component of the active design.

        rootComp = design.rootComponent

        # Create a new sketch on the xy plane.

        sketches = rootComp.sketches

        xyPlane = rootComp.xYConstructionPlane

        sketch = sketches.add(xyPlane)

        circles = sketch.sketchCurves.sketchCircles

        diameterFirst = 1

        circle1 = circles.addByCenterRadius(adsk.core.Point3D.create(0, diameterFirst, 0), diameterFirst)

        yRange=range(0,100,10)

        for yn in yRange:

            xRange=range(0,9,1)

            x=0

            y = yn * diameterFirst/9

            circle1 = circles.addByCenterRadius(adsk.core.Point3D.create(0, y, 0), diameterFirst)

            for n in xRange:

                diameterNext=diameterFirst + .1

                x=x+diameterFirst+diameterNext+0.2

                pointNext = adsk.core.Point3D.create(x, y, 0)

                circleInner = circles.addByCenterRadius(pointNext, diameterNext)

                diameterFirst=diameterNext

    except:

        if ui:

            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))

[BrianEkins · Accepted solution]

You use methods on the SketchDimensions collection, which you obtain from the Sketch object.  I modified your code to add this.  When placing a dimension, you need to specify the position of the text.  I tried using the center of the circle but for some reason, Fusion doesn't allow this so I offset it slightly to not be at the center.  I also added the use of the isComputeDeferred property of the sketch.  With this, the processing when from about 25 seconds to 2 seconds.

import adsk.core, adsk.fusion, adsk.cam, traceback

def run(context):
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface
        design = app.activeProduct
        unitsMgr = design.fusionUnitsManager
        unitsMgr.distanceDisplayUnits = adsk.fusion.DistanceUnits.MillimeterDistanceUnits

        # Get the root component of the active design.
        rootComp = design.rootComponent

        # Create a new sketch on the xy plane.
        sketches = rootComp.sketches
        xyPlane = rootComp.xYConstructionPlane
        sketch = sketches.add(xyPlane)
        circles = sketch.sketchCurves.sketchCircles
        dims = adsk.fusion.SketchDimensions.cast(sketch.sketchDimensions)

        sketch.isComputeDeferred = True
        diameterFirst = 1
        circle1 = circles.addByCenterRadius(adsk.core.Point3D.create(0, diameterFirst, 0), diameterFirst)
        center =  circle1.centerSketchPoint.geometry
        center.x += 0.01
        center.y += 0.01
        center.z += 0.01
        dims.addRadialDimension(circle1, center)
        yRange=range(0,100,10)
        for yn in yRange:
            xRange=range(0,9,1)
            x=0
            y = yn * diameterFirst/9
            circle1 = circles.addByCenterRadius(adsk.core.Point3D.create(0, y, 0), diameterFirst)
            center =  circle1.centerSketchPoint.geometry
            center.x += 0.01
            center.y += 0.01
            center.z += 0.01
            dims.addRadialDimension(circle1, center)
            for n in xRange:
                diameterNext=diameterFirst + .1
                x=x+diameterFirst+diameterNext+0.2
                pointNext = adsk.core.Point3D.create(x, y, 0)
                circleInner = circles.addByCenterRadius(pointNext, diameterNext)
                center =  circleInner.centerSketchPoint.geometry
                center.x += 0.01
                center.y += 0.01
                center.z += 0.01
                dims.addRadialDimension(circleInner, center)
                diameterFirst=diameterNext

        sketch.isComputeDeferred = False
    except:
        if ui:
            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))

[AagAag]

thank you for your invaluable help, which is greatly appreciated. I hope that I will not abuse your kindness by asking a further related question: how do I programmatically dimension the distance of each circle in the XY space, e.g. by specifying the distance to the origin, so that the sketch will be fully constrained? Thanks in advance!

[kandennti]

Hi @AagAag .

Because it looks interesting, I tried it.

def run(context):
    ui = None
    try:
        app = adsk.core.Application.get()
        ui  = app.userInterface
        design = app.activeProduct
        unitsMgr = design.fusionUnitsManager
        unitsMgr.distanceDisplayUnits = adsk.fusion.DistanceUnits.MillimeterDistanceUnits

        # Get the root component of the active design.
        rootComp = design.rootComponent

        # Create a new sketch on the xy plane.
        sketches = rootComp.sketches
        xyPlane = rootComp.xYConstructionPlane
        sketch = sketches.add(xyPlane)
        circles = sketch.sketchCurves.sketchCircles
        dims = adsk.fusion.SketchDimensions.cast(sketch.sketchDimensions)

        # extension method
        adsk.fusion.SketchCircle.setDimension = setDimension

        sketch.isComputeDeferred = True
        diameterFirst = 1
        circle1 = circles.addByCenterRadius(adsk.core.Point3D.create(0, diameterFirst, 0), diameterFirst)
        center =  circle1.centerSketchPoint.geometry
        center.x += 0.01
        center.y += 0.01
        center.z += 0.01
        dims.addRadialDimension(circle1, center)
        circle1.setDimension()

        yRange=range(0,100,10)
        for yn in yRange:
            xRange=range(0,9,1)
            x=0
            y = yn * diameterFirst/9
            circle1 = circles.addByCenterRadius(adsk.core.Point3D.create(0, y, 0), diameterFirst)
            center =  circle1.centerSketchPoint.geometry
            center.x += 0.01
            center.y += 0.01
            center.z += 0.01
            dims.addRadialDimension(circle1, center)
            circle1.setDimension()
            for n in xRange:
                diameterNext=diameterFirst + .1
                x=x+diameterFirst+diameterNext+0.2
                pointNext = adsk.core.Point3D.create(x, y, 0)
                circleInner = circles.addByCenterRadius(pointNext, diameterNext)
                center =  circleInner.centerSketchPoint.geometry
                center.x += 0.01
                center.y += 0.01
                center.z += 0.01
                dims.addRadialDimension(circleInner, center)
                circleInner.setDimension()
                diameterFirst=diameterNext

        sketch.isComputeDeferred = False
    except:
        if ui:
            ui.messageBox('Failed:\n{}'.format(traceback.format_exc()))

def setDimension(
    self :adsk.fusion.SketchCircle):

    skt :adsk.fusion.Sketch = self.parentSketch
    ori :adsk.fusion.SketchPoint = skt.sketchPoints.item(0)
    ctr :adsk.fusion.SketchPoint = self.centerSketchPoint
    ary = [(o + c) * 0.5 for (o, c) in
        zip(ori.geometry.asArray(), ctr.geometry.asArray())]
    mid :adsk.core.Point3D = ori.geometry.copy()
    mid.setWithArray(ary)

    dims :adsk.fusion.SketchDimensions = skt.sketchDimensions
    h = adsk.fusion.DimensionOrientations.HorizontalDimensionOrientation
    v = adsk.fusion.DimensionOrientations.VerticalDimensionOrientation

    dims.addDistanceDimension(ori, ctr, h, mid, True)
    dims.addDistanceDimension(ori, ctr, v, mid, True)

[BrianEkins]
