So I am at the stage where I need sanitary and vent system to be connected so it can give the appropriate takeoff.

but unless I am doing something wrong I have to do them as different services by breaking in-between pipes. If i try try to connected them at point of vent which should give you a tee then vent pipe continues it does not map the tee.

0 Likes
1,366 Views
14 Replies
Replies (14)
Message 2 of 15

RidgewayPlumbing
Enthusiast
Enthusiast

Sorry Mapping

0 Likes
Message 3 of 15

donald.kunath
Alumni
Alumni

Hi @RidgewayPlumbing



I wanted to provide an update regarding your question above that I have been working on for you.



You sent me your files last week, and I am still working with my experts on troubleshooting your issue.  We are diligently working to resolve your issue, and I will reach out this week with another update or solution.



Thank you for your time, please let me know if you have any questions or concerns.





Donald Kunath
Technical Support Specialist
Installation and Licensing Forum | Revit Ideas board

0 Likes
Message 4 of 15

donald.kunath
Alumni
Alumni

Hello @RidgewayPlumbing

I tried to reach you at the phone # provided but I was not able to.  Is there a good day or time for us to review the information that I was able to find?



After looking over your files and touching base with my peers we were able to determine what may be happening regarding your Tee not being mapped per your design line.



You are having this issue because you have 2 different design lines in one system (to be expected as you are drawing a waste and vent system).  See image below, Red is the waste design line, Blue is the vent design line.



Screenshot of provided fileScreenshot of provided file



As seen in the image above, the "Red" waste line comes from a fixture and empties down, while the "Blue" vent line goes up.  If the vent design line were not connected to the waste design line, then an elbow would populate in this case. Since the waste line and the vent line are not one design line, AutoCAD mep does not know how you would like it to be populated.  If it were one design line (using the line combine method) then the "Tee" will be mapped as one would expect.



Populated Tee after Design lines combinedPopulated Tee after Design lines combined

At this time, we do not know of a solution for this issue, as design line were not intended to be used to connect two different services.



I do have two workarounds that may be of interest.



First if you would like to keep the design lines separate, you are going to have to take off the "Tee" fitting manually, by placing it on the node.

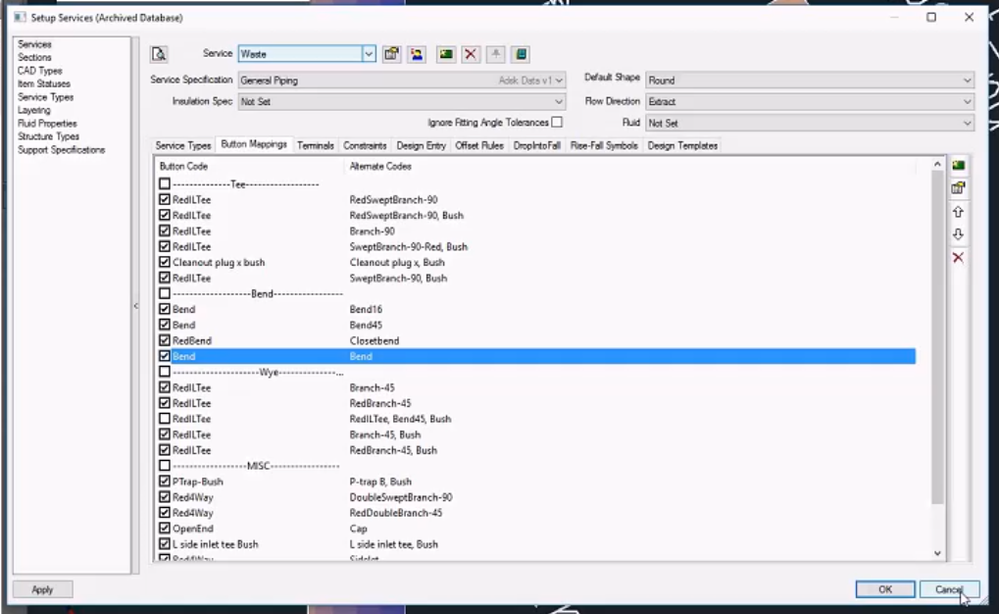

Or you can tell CADmep to apply a "Tee" fitting to the bend node using the Setup Services folder, as the very last option for Bend - see image below.



Setup ServicesSetup Services

The last method is more of a trick, and not a typical workflow method, but I wanted to provide as many opportunities as possible.

Please let me know if this helps you, and if not kindly reply back to this forum and we can continue to troubleshoot.









Donald Kunath
Technical Support Specialist
Installation and Licensing Forum | Revit Ideas board

0 Likes
Message 5 of 15

donald.kunath
Alumni
Alumni

Hello @RidgewayPlumbing

I hope you are doing well and making lots of progress on your project.



I wanted to check in and see if you had a chance to review the suggestions from my last forum post, or if you have any additional questions for me?



If you found my previous post solved your problem, please click on "Accept Solution" to help others with similar questions.



Thank you and I look forward to your thoughts!





Donald Kunath
Technical Support Specialist
Installation and Licensing Forum | Revit Ideas board

0 Likes
Message 6 of 15

RidgewayPlumbing
Enthusiast
Enthusiast

the suggestions are good but then you cannot change the direction of the tee

0 Likes
Message 7 of 15

donald.kunath
Alumni
Alumni

Hi @RidgewayPlumbing



Thank you for your update!



A colleague of mine recorded a screen-cast that reviews your issue about changing the direction of the tee.



CADmep - Inlet/Outlet options



Does this answer your question?



If you found my post solved your problem, please click on "Accept Solution" to help others with similar questions.



Thank you and I look forward to your thoughts!







Donald Kunath
Technical Support Specialist
Installation and Licensing Forum | Revit Ideas board

0 Likes
Message 8 of 15

RidgewayPlumbing
Enthusiast
Enthusiast

It does help knowing that the vent system tees are all backwards so I can change the main to be backward standard thanks.

0 Likes
Message 9 of 15

donald.kunath
Alumni
Alumni

Hi @RidgewayPlumbing



Great!  I am happy I was able to resolve your issue!



As you found my last post solved your problem, can you please click on "Accept Solution" to help others with similar questions?



Thank you for being a part of the forum community!







Donald Kunath
Technical Support Specialist
Installation and Licensing Forum | Revit Ideas board

0 Likes
Message 10 of 15

ZTR88
Advocate
Advocate

I'm having this exact same issue trying to connect a vent service design line to a sanitary service design line. Was this issue ever properly resolved? We make sanitary to vent connections throughout our models and this will be a big issue for us. We've just recently started using this software and ran into this almost immediately.



Is there a way to connect two separate design lines from two separate services using the same pvc material? To where the sanitary tee would populate?

0 Likes
Message 11 of 15

RidgewayPlumbing
Enthusiast
Enthusiast

There is no solution, but what i did was meet both systems halfway.Vent,san.jpg

0 Likes
Message 12 of 15

ZTR88
Advocate
Advocate

Ok... But if you were to spool that to be fabricated it would have that extra small piece of sanitary pipe in the top of the san-tee and the vent pipe would be too short correct? That's the conclusion we've come to.



...And without being able to snap the vent pipe into the hub of the sanitary tee manually, that cut piece for fabrication will never be accurate.

0 Likes
Message 13 of 15

RidgewayPlumbing
Enthusiast
Enthusiast

I am sorry to say that's as far as I got with them with an answer. Or you make everything the same system for it to work and create two different tee's so it can be redirected in the opposite direction. I am still waiting on answer from autodesk for about 4 months now based on a part that they built that does not work in design line.

0 Likes
Message 14 of 15

Anonymous
Not applicable

By Code:  the vent starts 6 inches above the fixture. Correct me if I am wrong. What you show connects at the Tee.



0 Likes
Message 15 of 15

ZTR88
Advocate
Advocate

6" is the minimum distance above the flood level rim that a dry vent is required to rise and the minimum to which a vent can connect. Regardless of the code involved, You wouldn't prefabricate and install a coupling at that random elevation just because of a theoretical change from sanitary to vent. Also, the two services in that case would still not connect with design line.



The practical thing to do is to use one solid vent pipe down to the sanitary tee so that it can be spooled / prefabricated and installed properly without a unnecessary coupling. Design line doesn't allow for that connection to be made.

0 Likes
