Offset normal to Surface

[AllenJessup]

This had been discussed so long that the original post aren't even archived.

We need the ability to offset a surface. Landfill caps and certain types of excavation or fill need to be calculated this way. I WAS doing this in AutoCAD back in the 90's using a program called QuickSurf. Fifteen years ago I tried to write a lisp to do this using the NOR function in the Geometry Calculator. But, not being a programmer, I never finished it. So I believe this it doable but I don't know how much work it would take.

Allen

[thilina_d]

A flat surface can be offset using the Raise/Lower command. However, for surfaces with varying slopes, this approach is incorrect, as the offset should be perpendicular to the respective surface at each point.

[AllenJessup]

I see this has become popular lately. 😉

[joantopo]

Trimble Access has 2 parameters to show the elevation from a Surface  (vertical or perpendicular)...

[Karsten.Saenger]

All, this idea is available in the Civil 3D Public Roadmap for voting and adding comments.
Search for "Offset Normal to Surface" here: https://autodeskblog.wpengine.com/aec/roadmap/civil-infrastructure-roadmap/

[Karsten.Saenger]

All, this idea is available for leaving comments and voting on the Public RoadMap for Civil 3D:
https://autodeskblog.wpengine.com/aec/roadmap/civil-infrastructure-roadmap/https://autodeskblog.wpengine.com/aec/roadmap/civil-infrastructure-roadmap/

Search for "Offset Normal to Surface" under "Next".

[ntclmain]

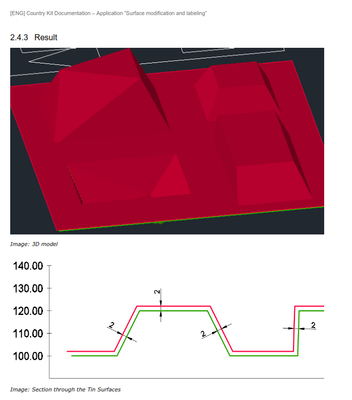

I've found that:   The tool "C3D CK SurfaceModification 2024" in German country kit provides the offset function

https://download.autodesk.com/akn/2024/civil3d/country-kits/dach/dach_content_c3d_2024.0.1.exe

*

According to version history, this tool is developed since 2020

*

For Civil 3D 2025, the "DACH Civil 3D Country Kit 2025.1 for Autodesk Civil 3D" is hosted at https://manage.autodesk.com/products/updates/

[AllenJessup]

BTW. This feature is on the Next tab of the Civil Infrastructure Roadmap. You can vote for it there also.
