Rim to sump height structures, extracting data

jack_bianco · ‎03-14-2024

I need to get data in excel for the depths of all the structures in my model. I can get a lot of data such as width and height of these structures. But I need rim to sump height. Basically, the depths (inner structure height) of all the structures in my model. Please help, I can provide more information if needed.

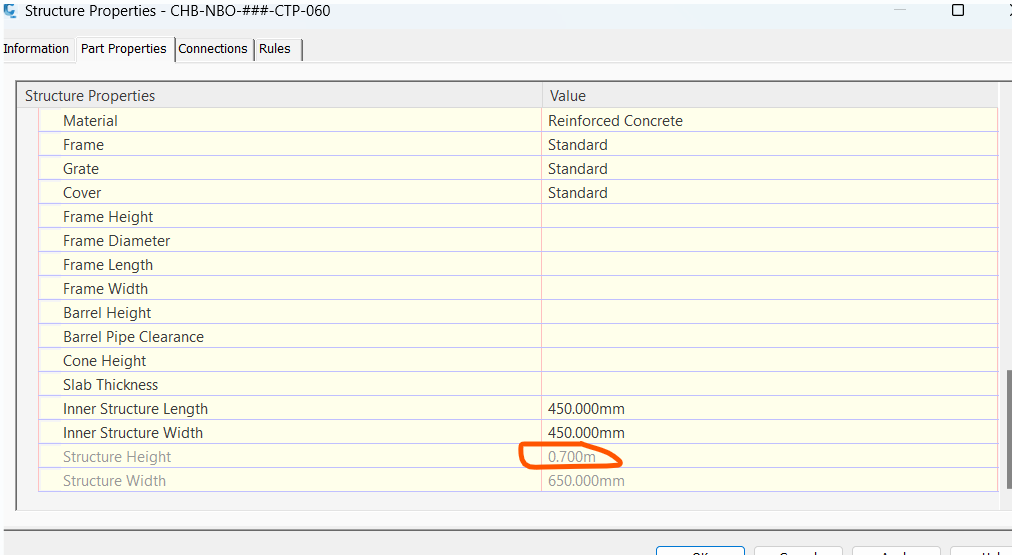

Structure height, I need

rl_jackson · ‎03-14-2024

Have you looked at project explore to export this data?

https://www.youtube.com/watch?v=MqnUslv8tT4

https://www.youtube.com/watch?v=5VIsA2edEWE

Rick Jackson
Survey CAD Technician VI
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

Joe-Bouza · ‎03-15-2024

Copy paste doesn't work?

Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
