Hi, I guess this is a pretty standard solution, but I can't figure it out by myself. I have several hairpin bends where I would need curves with more than 180° angles, is there a way I can modify the geometry of my alignment this way? The only way that I found is to create two separate curves with a short tangent between them...



ScreenHunter 555.png



Thanks, Tom

0 Likes
Reply
Accepted solutions (1)
657 Views
12 Replies
Replies (12)

Joe-Bouza
Mentor
Mentor

Can you post it?

Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes

Fuscha
Advocate
Advocate

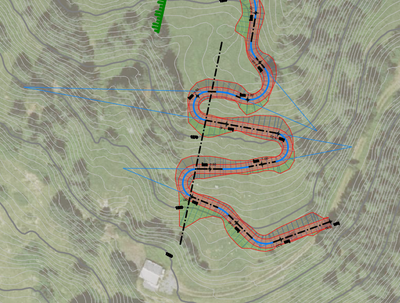

Here is my drawing

0 Likes

Joe-Bouza
Mentor
Mentor

never mind see next reply









Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes

Fuscha
Advocate
Advocate

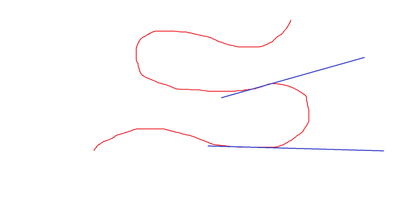

I want a curve (hairpin bend) that has more than 180 degrees change in direction. It doesn't work with 2 normal tangents since they don't meet at a point. Like this:


0 Likes

Joe-Bouza
Mentor
Mentor

But you don't have that geometry in you file. where do you want this and what radius are you looking for?

Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes

Joe-Bouza
Mentor
Mentor
Accepted solution

you cannot create a curve without a PI, however you can construct/ trace the tangents with acad lines us circle ttr  then use three point curve in alignment tool bar



of course you can draw the 3 point direct and adjust



Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes

Joe-Bouza
Mentor
Mentor

PS: after the tree point curve is created you can change to free in the alignment properties

Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes

Joe-Bouza
Mentor
Mentor

I really like your code set style for cut and fill display

Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes

Fuscha
Advocate
Advocate

Thank's, that was the answer I was looking for, but what do you mean with "free" in the alignment properties?

0 Likes

Fuscha
Advocate
Advocate

I designed it a couple of years ago, someone in this forum helped me aswell back then haha 🙂

0 Likes

Joe-Bouza
Mentor
Mentor

The alignment creation tool bar offers different types of curve restraints, Free, Floating and Fixed.



In your circumstance you cannot create a Free curve because the constraint needs two tangents that are connected at a PI.



So that leave Floating and Fixed. Either could have been used in your circumstance, but I chose Three Point Fixed. Fixed is just that you cannot change it graphically.



On the alignment tool bar you can show the properties of segment ( sub entities) and make adjustment to parameters ; radius and the like.  There you can also change the type ( not always ) to Free and then you can change it graphically if desired.

Joe Bouza
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Fuscha
Advocate
Advocate

Oh ok, thank's for that detailed answer
