Displays multiple Surface elevation in a band of profiles

[Oliver_C3D]

Hi Everyone

How can I display all surface elevations in one band when I have 2 or more Surfaces in a profile?
But in the band only elevation takes a surface?

[tcorey]

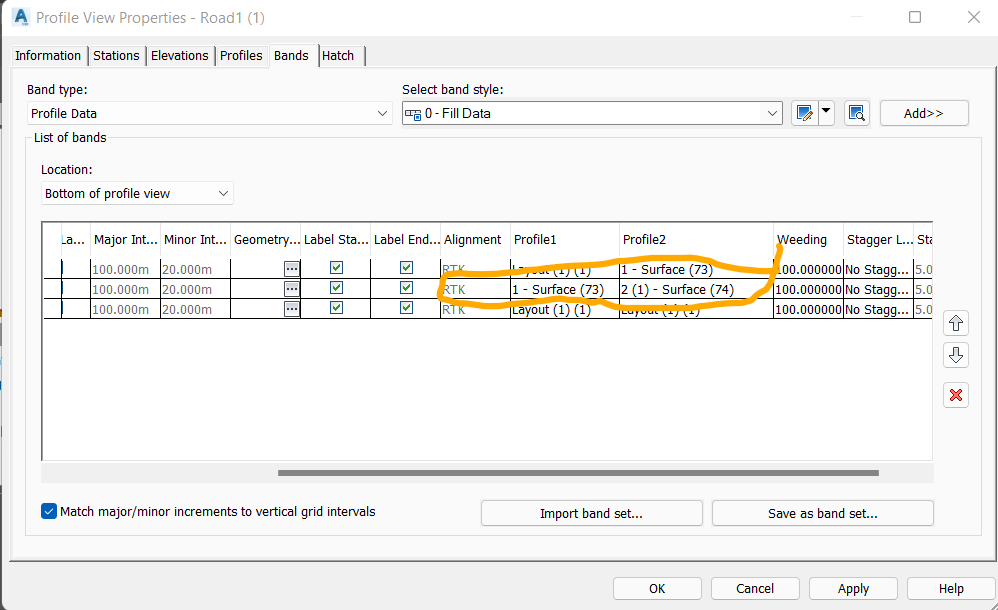

Add multiple bands of the same type and pick different surface profiles for the Profile 1 and Profile 2 in the different bands.

[Jeew-m]

This would help you.

[video]

[Oliver_C3D]

Hi

@tcorey

@Jeew-m

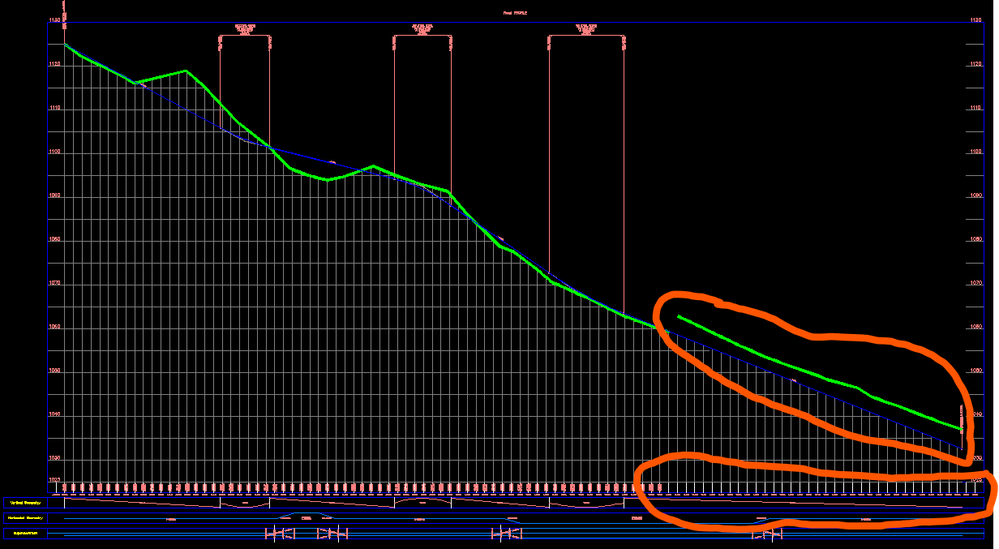

I have two Surfaces in the profile and I want to show the heights of both Surfaces in one band in the Ground Elevation band.

[tcorey]

Post your drawing.

[Jeew-m]

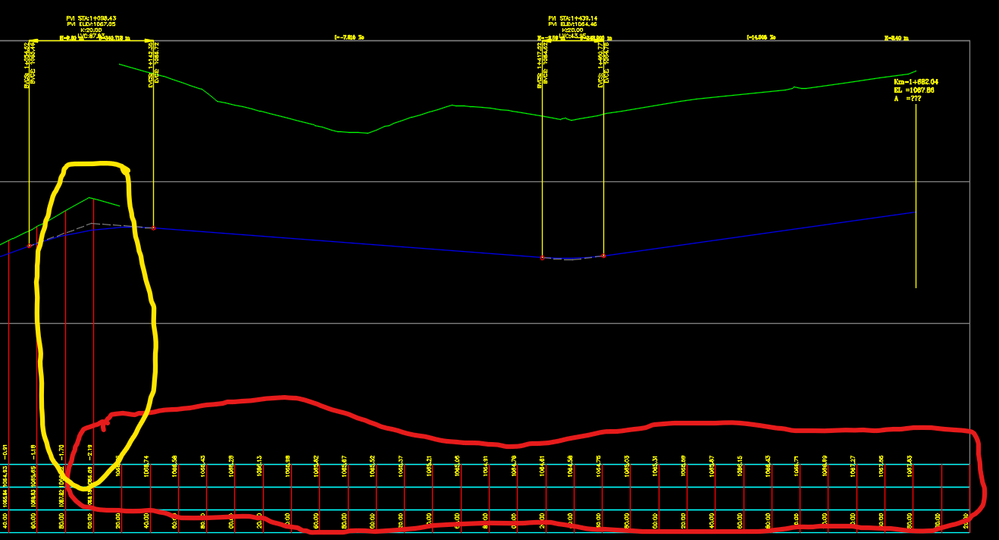

It seems like you have 3 profiles in the drawing, two surface profiles, and one design profile.

Using normal band labeling you will only add two profiles to the band.

You can try two things.

1. Create a new surface--> paste both surfaces on to new surface --> create surface profile for new surface

However, this may not be fully accurate depending on your surfaces.

2. The other thing is to add an optional band to the profile view to show the second surface profile.
