Could anyone tell me how to create a curve box ?

[Gauravvpandey]

I have received a ref file from my friend as attached , i needed a multiple point of intersection table. I want to create similar to that one but don't know how it was created. I have attached same file for your ref.

[ecfernandez]

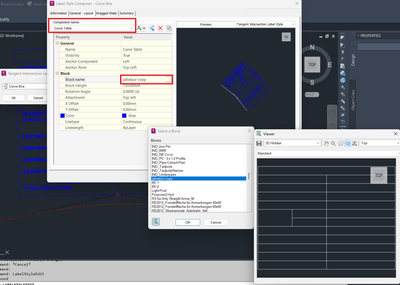

Hi @Gauravvpandey, by opening your file I realized this was made out of three components (Left, Right, and Curve Table). The table graphic representation is controlled by a block, and the text on the left and right are controlled by a few properties from the Text Component Editor and a few hard coded items like the ones for superelevation and design speed.

See the break down:

Table style

Table Block:

Left curve table text (hardcoded text):

Right curve table text:

I hope this helps you understand what your friend did, so you can create your own.

Best regards,

[user181]

If you don't want to waste time creating it just copy and paste the curve and label from that drawing into your template and use it or modify it as needed. Once you paste it into your template that style will be in your template to use.
