Can't add elevation label to polylines

a176941
Community Visitor

Can't add elevation label to polylines

a176941
Community Visitor
Community Visitor

Hello, I am still new to AutoCAD Civil 3D. I want to add elevation label to polylines but failed to do so. I already tried "Line and Curve" but I still couldnt do it. Any ideas how to label my polylines since I dont have any surface in my drawing. Thank you in advanced!

0 Likes
Reply
2,327 Views
6 Replies
Replies (6)

lim.wendy
Community Manager
Community Manager

Hello @a176941!



A warm welcome to the Civil 3D Community! Thank you for posting your question. 🙂

I've a quick look at your drawing, you have built the surface but the layer which the the surface is built in on Layer 0 and is turned off.

Look at the tip from this post on importing surface styles to stylize your surface.

Once you have the correct style applied to your surface, you can label the contours. Learn more here.





Wendy Lim

Data Nerd | Community Advocate | AEC Industry


facebook twitter twitter blogs pm


Join the new online Rail Community


Rails Summit




0 Likes

Anonymous
Not applicable

using the wrong function, where you see line and curve, do down and select surface and then set your label type and and styles and you should be good to go. Sorry assumed that was a surface. You probably need to set the right settings for your label style assuming your pline is elevated.

0 Likes

jalnealFG
Contributor
Contributor

Created a quick video that explains how to get the types of labels you are looking for.

https://www.youtube.com/watch?v=i2fviJUG4QU



Grover_Puma
Advisor
Advisor

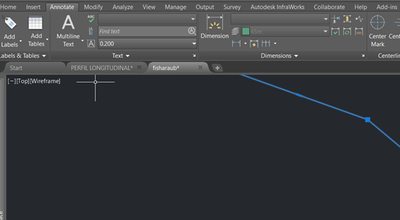

select poliline / add labels


LINE AND CURVE


CREATENEW


TEXT


GENERAL SEGMENT START Z / OK


IS THE SAME ELEVATION




if this helps to solve your problem, ACCEPT SOLUTION please, this will help others find immediate answers. Thank you


ACEPTA LA SOLUCION que responde a tu pregunta, esto ayudará a otros a encontrar respuestas de una manera mas sencilla.
Si te gusta esta publicación, dale ME GUSTA.

Saludos!

lim.wendy
Community Manager
Community Manager

Hi @a176941



Thanks @Grover_Puma , @Anonymous , @jalnealFG for these great tips.

Do let us know if the suggestions help 🙂
