Realistic View in Ortho

1 REPLY 1
Reply
Message 1 of 2
jaykishor
324 Views, 1 Reply

Realistic View in Ortho

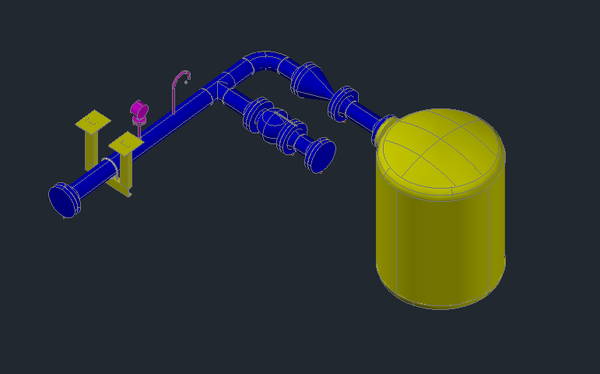

I want to show realistic view(same as souce) with source color in 2d ortho. Is there any method?


Souce file:




1 REPLY 1
Message 2 of 2
h_eger
in reply to: jaykishor

Dear @jaykishor ,



not really. This form of presentation does not comply with the rules of technical documentation.
You can of course insert views into your ortho drawings but these views are unfortunately without function.

-

If my reply was helpful, please give a "Kudo" or click the "Accept as Solution" button below (or both).

Hartmut Eger
Senior Engineer
Anlagenplanung + Elektotechnik
