Off-page connector symbol change in Plant 3D

[pedro_d_ferr]

Dear all,

I come to ask for your help. I am working on a Plant P&ID project and along the way I have been adding some new equipment or new symbols for existing equipment in the project setup, without issues.

Now I wanted to add a new, simpler symbol to the Off-page connector (OPC) item. I edited a new symbol and it worked fine.

But then I created a new drawing in this project. For some reason, when I add this new OPC symbol in this new drawing the old symbol is inserted! It is so strange because in older drawings the new OPC is inserted and works fine but in this drawing it's always the old one that appears!

Things I've tried:

- AUDITPROJECT; REGENALL; SYNCHSTYLES

- Go to project setup and check the symbol again. Add it to the tool palette again

- Copy symbol from another drawing: when I paste it turns to the old symbol!

- Restart plant

- Ask another user to try

Old OPC symbol

New (simpler) OPC symbol

 Thank you very much for your time. I hope you can help me

Pedro

@pedro_d_ferr
Topic Title has been changed for better findability by @joaquim.moral Original Post:

Off-page connector symbol change



[Michiel.Valcke · Accepted solution]

From the top of my head, the following information can give us more to go on and see what the issue is?

Did you create a new symbol for the 'out-of-the-box' off-page-connector. Or did you create a new connector type?

Did you set the graphicalstylename of your new symbol to the correct symbol?

Are you using a completely new block definition (with a new name) or are you changing the existing block definition?

[joaquim.moral]

Hi @pedro_d_ferr,
Thank you for posting in the AutoCAD Plant 3D Forum! I'm checking in to see if you need more help with this. Did the suggestions @Michiel.Valcke provided help you?

If so, please click Accept as Solution on the posts that helped you so others in the community can find them easily. If not, let us know if you have any more questions so we can help you.

Best,
Joaquim

[pedro_d_ferr]

Dear Michiel

Thank you for the reply.

I created a new symbol for the out-of-the-box OPC.

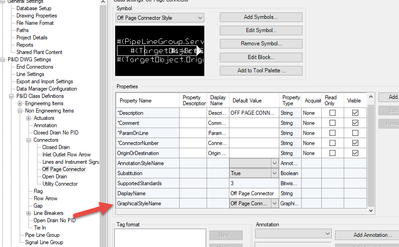

I changed the GraphicalStyleName, as you suggested and it worked!

Thank you so much for you help!! 😁🙏

[Michiel.Valcke]

You're welcome ^^
