How can I exclude these flange dimensions from isometrics?

2 REPLIES 2
Back to AutoCAD Plant 3D Category
Back to Topic Listing
Reply
Message 1 of 3
arron.craig
Collaborator
274 Views, 2 Replies
‎11-21-2021 01:35 PM
‎11-21-2021 01:35 PM

How can I exclude these flange dimensions from isometrics?

I'm having trouble finding the setting to toggle this dimension for what looks like flange thickness. Does anyone know where this is configured?

I'm using Plant3D 2022









Report
0 Likes
Reply
2 REPLIES 2
Message 2 of 3
rajendra.prajapat
Advisor
in reply to: arron.craig
‎11-22-2021 12:22 AM
‎11-22-2021 12:22 AM

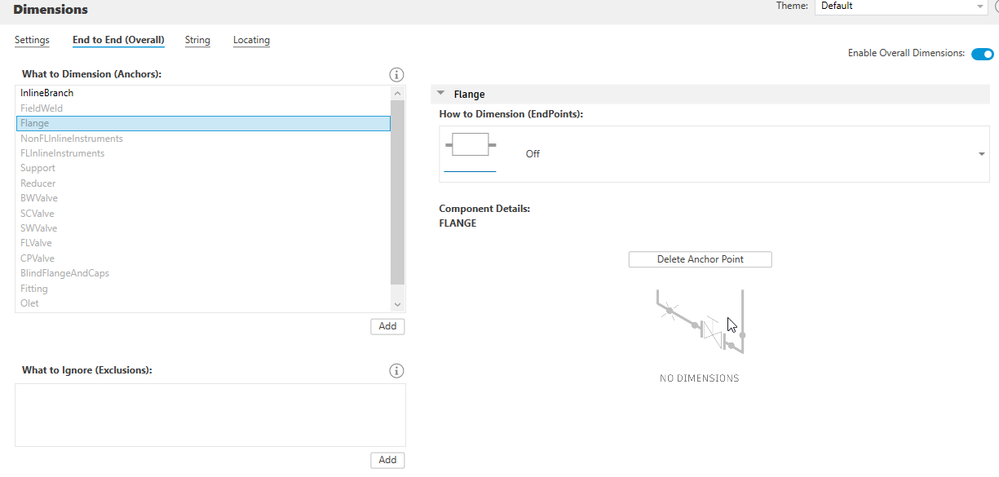

@arron.craig Please see attched image.Capture.PNG

If my reply was helpful, please give a "Kudo" or click the "Accept as Solution" button below (or both).
Report
0 Likes
Reply
Message 3 of 3
arron.craig
Collaborator
in reply to: arron.craig
‎11-22-2021 01:23 PM
‎11-22-2021 01:23 PM

Thanks @rajendra.prajapat but that doesn't seem to be having any affect. I tried the InlineBranch and the Flange option and set both to off without any change.

I will play around with this some more on a default project to rule out any other settings that might have been changed.

Report
0 Likes
