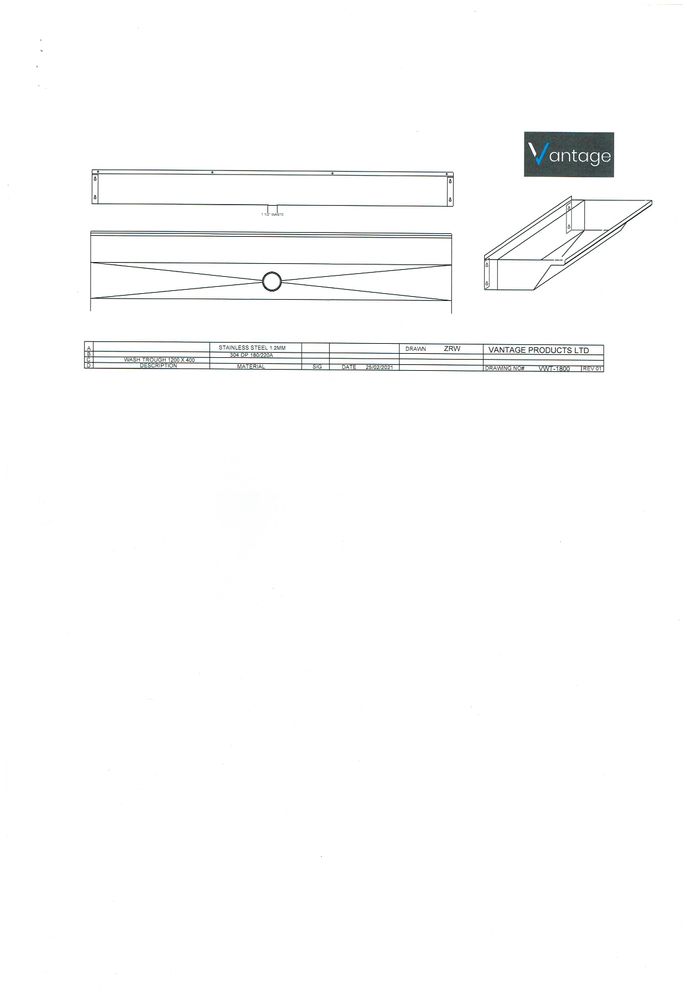

Missing Dimensions
Post the drawing so we can have a look at it.
Just describing the problem without us seeing the drawing does not help.
Howard Walker
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
The screenshot is not attached. You need to click in the camera icon highlighted in the image below and then choose the image.
Howard Walker
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Check that the items which are not printing are not on a layer called DEFPOINTS, OR that the layer has not been switched off for printing. See the image below. DEFPOINTS is AutoCAD's default no plot layer and as you can see the printer icon I've circled has a "NO ENTRY" symbol next to it which means don't plot this layer.
Howard Walker
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
If any of the dimensions are on the defpoints layer. Move them to a different layer. As I have said the defpoints layer is AutoCAD's don't plot anything which is on this layer.
Howard Walker
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Hi
so these are the settings, they are the same as another drawing that prints all lines and Dims ?
You need to make sure that no dimension or lines are on the defpoints layer. Select anything which doesn't plot and then look at the properties of it (CTRL+1). If they are on the defpoints layer change it to 0
