Sweeping command issue

Anonymous
Not applicable

I am busy designing a Haul road under ground and my sweeping command is not sweeping correctly .



My path is a 3d polyline.



Please Help...

File is attached

0 Likes
929 Views
10 Replies
Replies (10)
Message 2 of 11

Patchy
Mentor
Mentor

Sweep and twist it 90 degrees


0 Likes
Message 3 of 11

Anonymous
Not applicable

how did you do this? i tried and failed.





0 Likes
Message 4 of 11

Anonymous
Not applicable

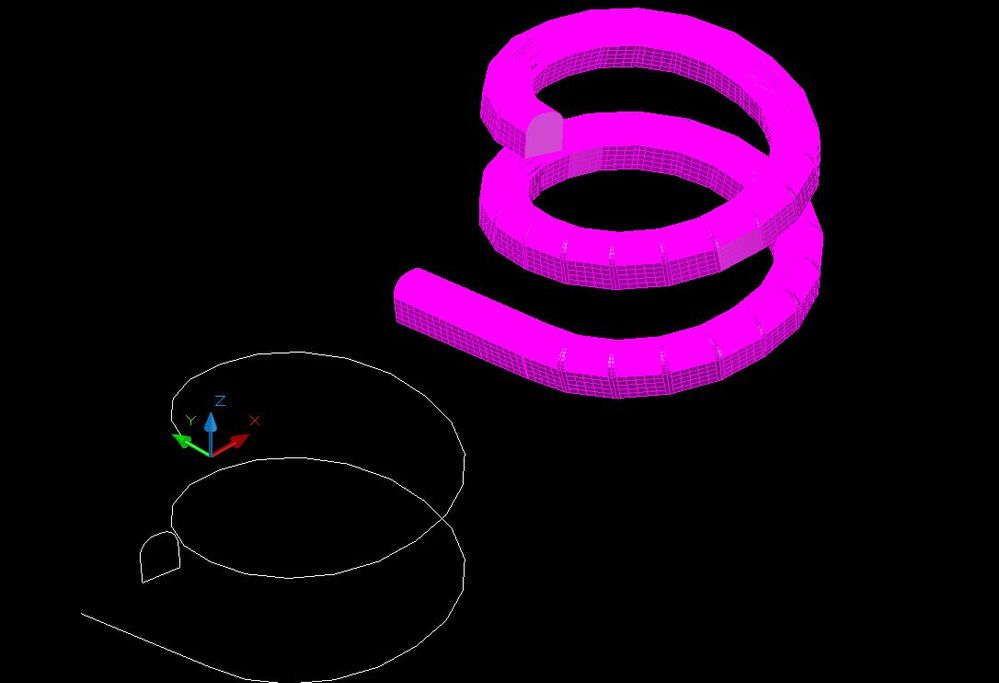

see snips attached

0 Likes
Message 5 of 11

Patchy
Mentor
Mentor

That was how I did it, after sweep command, I chose twist and used 90 degrees, it took about 30 seconds to complete that task.

Try the red 3dpoly and see if it works for you.

Message 6 of 11

Anonymous
Not applicable

what coords did you use.



Please see snipit



Could you make a vid by any chance?

0 Likes
Message 7 of 11

Patchy
Mentor
Mentor

I'm using your drawing, copy the path and the section of the tunnel, I always leave the original alone.

I cannot make videos, but you can see all the commands I used, nothing special.


Message 8 of 11

Anonymous
Not applicable

thanks man. does not want to work.

What version are you using?

0 Likes
Message 9 of 11

Patchy
Mentor
Mentor

2008 Autocad

0 Likes
Message 10 of 11

j.palmeL29YX
Mentor
Mentor

@Patchyschrieb:

2008 Autocad


In newer AutoCAD versions this does not work correct anymore.
Here a screencast how I got an approximated solution in ACAD 2018:
https://autode.sk/2KBiALx

But attention: A good value for the twisting you must find by experimenting. A value a bit smaller than 105° (I only did guess) can give a better result. A correct solution is not possible this way. (This also applies to the solution shown above).



cadder







Jürgen Palme
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 11 of 11

j.palmeL29YX
Mentor
Mentor

A better result you will get this way:

Put some sections (the tunnel contour) along the spline. This I din't show in the screencast. Then use the loft command, from one section to the next next next ... Then choose the Path option and select the Spline. (Now you have to wait some seconds - voila)



https://autode.sk/2jutcPL



HTH

cadder

Jürgen Palme
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature
