Problem with "Sweep"

Anonymous
Not applicable

I using sweep function to create a curved surface, basically  i trying to sweep the surface follow the few combined arc lines, but turns out after sweep there are some extra over there, wandering how can resolve this problem to have a smooth surface, thanks   .

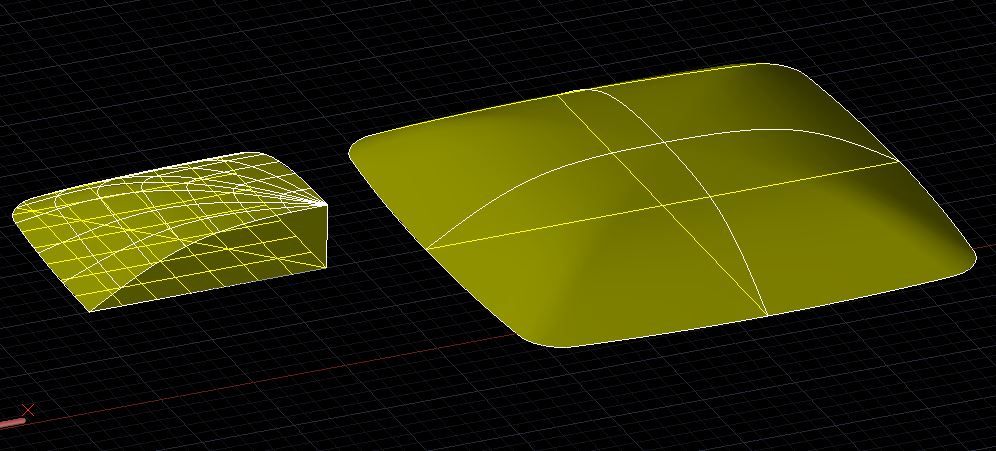

BeforeBeforeAfter SweepAfter Sweep

0 Likes
Accepted solutions (1)
654 Views
2 Replies
Replies (2)
Message 2 of 3

Erense
Collaborator
Collaborator

Try creating the sweep for only 90°. and copying the result.
Is that what you are trying to get?
Closed sweeps often dont give a decent result.
Or you can try LOFT on different 'heights' of the surface



If my post answers your question, please click the "Accept as Solution" button. This helps everyone find answers more quickly!

Kind regards,

Edwin Rense
Cadac Group AEC BV
Supporting Consultant AEC
Cadac Group .
Message 3 of 3

leeminardi
Mentor
Mentor
Accepted solution

The distance from A to B is greater than the distance from A to C so using sweep is not a good choice.




As pointed out, it is better to use loft.

In the following progression I created 3 cross sections (yellow), turned them into regions and then used loft and before exiting the loft command I used the red polyline as a guide yielding the shape in the third object.  I then used mirro3d and surfsculpt to make the final solid object.





lee.minardi
