How can I get the list of points?

Anonymous
Not applicable

I have a dwg file in which there are aparanetly some points (see attachment). But when I want to get the coordinates of this points using the following lisp, the answer comes that no object is selected.

(defun c:lixt ( / i s )
    (if (setq s (ssget '((0 . "POINT"))))
        (repeat (setq i (sslength s))
            (princ
                (apply 'strcat
                    (mapcar 'strcat '("\n\tX=\t" "\tY=\t" "\tZ=\t")
                        (mapcar 'rtos (cdr (assoc 10 (entget (ssname s (setq i (1- i)))))))
                    )
                )
            )
        )
    )
    (princ)
)





I appreciate any recommandation.

0 Likes
Accepted solutions (1)
6,284 Views
3 Replies
Replies (3)
Message 2 of 4

imadHabash
Mentor
Mentor
Accepted solution

Hi,

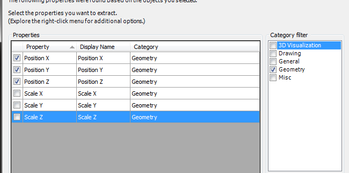

as seen from below image and as i understand that you want to find coordinates ( x,y,z ) for those points ... you can easily get coordinates by EATTEXT command . just be patient and go through 8 / 8  pages data extraction and select proper settings in every dialog to get what you see below .






Hope it's help ... 🙂

Imad Habash

EESignature

0 Likes
Message 3 of 4

j.palmeL29YX
Mentor
Mentor

In your drawing is only ONE Point.

What you want to get are (I guess) the insertion points of block references.



cadder

Jürgen Palme
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 4 of 4

Anonymous
Not applicable

Yes yo got right. According to AutoCAD definition they are not points. The plus-symbols are in reality points on the field, which has been measured.
