Get rid of default DIMSTYLE setting

scottn25JAL
Participant
Participant

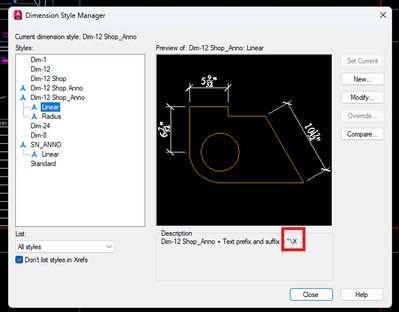

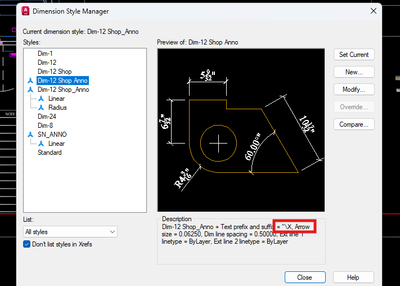

Hi! I'm frustrated because I feel like this should be a simple task but I've gone through all my dim settings and can't find how to get rid the "\X" as the default suffix. It's not the end of the world, but it's annoying enough that I've spent more time on it than I care to admit. I started at a new company and they have that as a setting already, they also don't use/know how to use annotation very well so I'm using a lot of my own settings for speed and ease of use. Screenshots below, thanks!






0 Likes
Accepted solutions (1)
687 Views
8 Replies
Replies (8)
Message 2 of 9

apjones
Collaborator
Collaborator

Look into "DIMAPOST"



https://help.autodesk.com/view/ACD/2026/ENU/?guid=GUID-AEA9448D-CC01-404B-AFA0-055B9C2F21EE



If it is in your drawing template, change it there as well.



Pete

>Please Accept as Solution and give Kudos as appropriate to further enhance these forums. Thank you!
Message 3 of 9

imadHabash
Mentor
Mentor

Hi,

Can we have here a CAD dwg sample with that dimension style?



Imad Habash

EESignature

0 Likes
Message 4 of 9

scottn25JAL
Participant
Participant

Here's my current template I'm working with.

0 Likes
Message 5 of 9

scottn25JAL
Participant
Participant

DIMAPOST is still set to "", which would indicate there should be nothing coming after.

0 Likes
Message 6 of 9

apjones
Collaborator
Collaborator
Accepted solution

It looks like "DIMPOST" (notice the difference) is the culprit.  Try setting it to blank.



https://help.autodesk.com/view/ACD/2026/ENU/?guid=GUID-79CCF9B1-BE33-4158-891C-50E4BF795D8E






Pete

>Please Accept as Solution and give Kudos as appropriate to further enhance these forums. Thank you!
Message 7 of 9

imadHabash
Mentor
Mentor

Thanks for CAD file...

As much as i understand ... I think it will be resolved if you delete   "   from all dimension styles and as shown below.




Click on above image to see how It works fine with me and "\X" gone.



Imad Habash

EESignature

Message 8 of 9

scottn25JAL
Participant
Participant

THANK YOU! This little detail has been a thorn in my side for a few weeks.

Message 9 of 9

scottn25JAL
Participant
Participant

Thanks! But I'm actually trying to keep the inch markings in so I can just dimension and move on without having to add them all over. It would seem that my issue was with the "DIMPOST" setting.
